What is Paketti

Paketti has been called a firmware update or a framework for Renoise. It introduces thousands of shortcuts, hundreds of midimappings, over 30 dialogs and multiple multiple tweaks to Renoise.

What people say about Paketti

“It’s like it’s Renoise+”

“Your extension has so much to it. I was playing around with it the other day and I feel like I need to spend just a day to learn everything I can do with it. It’s like Renoise+”

“Your tool is really well thought out - most well thought out Renoise tool I’ve come across actually. Functions I even didn’t think about and it’s already inside your tool. Speaking of dedication.”

“I was mostly in awe and started immediately imagining new ways to use renoise”

“This is by far the most thought out tool ever. Why is this not natively implemented?”

“every renoise user should know and use paketti, without it renoise is not so fun”

“got to be one of the most (if not the most) organized set of tools ive ever seen for Renoise.”

“I found Paketti to be the most versatile and flexible in its development direction. It has made Renoise very useful and enjoyable to use. Thank you.”

“You are essentially writing… a completely new framework over the engine.”

“I have no doubt that you are the most important person in the various Renoise Tools developers.”

“You RULE. Thanks for being so responsive … and for the massive amount of work into creating this. Really is like Renoise+++”

Where to say things about Paketti

• Join the Paketti Discord
• Leave issues here on GitHub
• Hit the mostly dead Renoise Forum Paketti thread

How to Support

You can

• Join my Patreon as a monthly supporter. This adds up and would help me. There are different level tiers from 3€ to 300€.
• Sponsor me on GitHub at GitHub Sponsors
• Send me a donation via PayPal.
• Buy Paketti via Gumroad for a one time purchase.

Roadmap

I’m slowly processing through a bunch of Renoise Forums, such as “Ideas and Suggestions”, “Beginners Questions” and filtering through them one thread at a time to see new ideas, deciding “This can be scripted” -> and add it to the todo-list.

The Ideas and Suggestions forum dump I created, has all the thread posts from 2002 onwards to 2024 April, all 7361 of them and as of October 30th I had only 4400 of them left to go through. This is only the beginning, because once I have made it through that list, it’s time to check out the 5000+ Beginners questions, and the other couple of thousand threads from “Renoise Tools Discussion” & “Renoise Tools” for abandoned tools.

After I’ve filtered up a list of things I can do, it’s time to turn them into tickets. As of today, I have 543 items picked from “Ideas and Suggestions” - some of which I have already scripted.

I’m also running through contacting people and asking for more details, trying to get more ideas of their issues with Renoise or trackers.. And one thing leads to another.

If there’s anything in the manual here, that feels obscure or requires more explaining, please send me a message or leave an issue, and I’ll try to flesh it out and write it more clearly.

So to repeat, I’m adding features people have requested over the past 22 years, I’m adding features from other trackers, and also tweaking abandoned tools and making them work again, but the Paketti way, and introducing them.

Hence why it’s useful if I can get as much support as I can to keep going at this, it feels like this’ll take 3-5 years to cover everything.

Brickwall

Paketti introduces improvements to the Pattern Editor, Sample Editor, Automation, Pattern Matrix, Instrument Box, Mixer, Device & Sample management, Theme management, Phrase Editor… etc. The tool tries to circumvent some of the most painful points of Renoise, and replace them with better, easier, faster, more user-friendly solutions. Quality-of-Life & Workflow improvements over “multiple mouse clicks”.

Loading Samples

One of them is the complete dismissal of the Disk Browser. You don’t need to use it to load samples or save samples. In fact, I would encourage you to never use it for loading or saving samples - just use the Paketti solutionss.

The Windows Explorer and macOS Finder are far more robust and stronger solutions. When you trigger the following shortcuts or menu entries or midimappings, the Windows Explorer, or the macOS Finder will be opened - allowing you to select multiple samples from multiple folders, access the sidebar/favorites you have set yourself, and, just, be faster than the Disk Browser.

For that, you just use the Paketti PitchBend Multiple Sample Loader & Paketti PitchBend Drumkit Loader shortcuts. These will load a sample (or multiple samples), and immediately initialize it with:

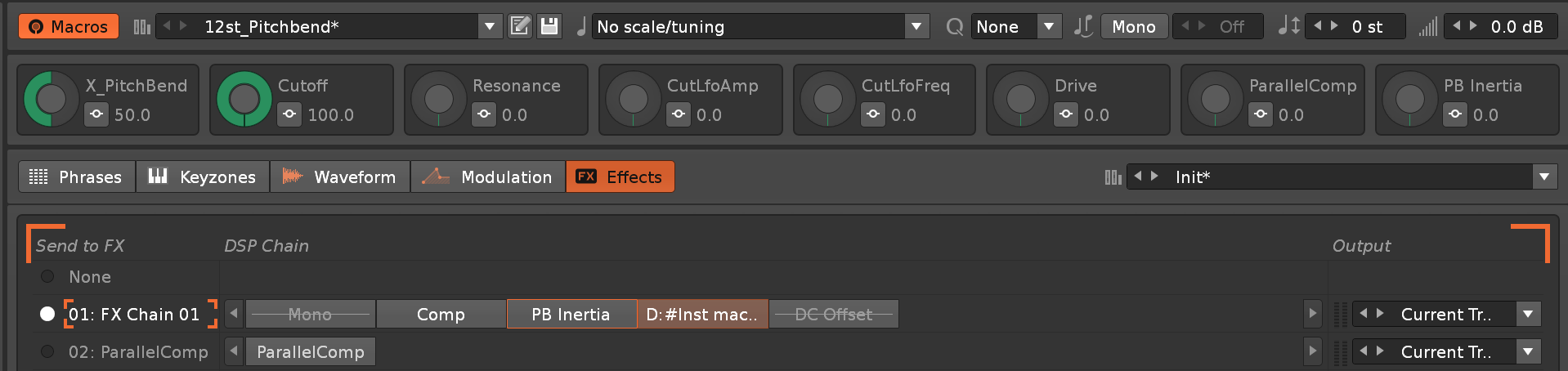

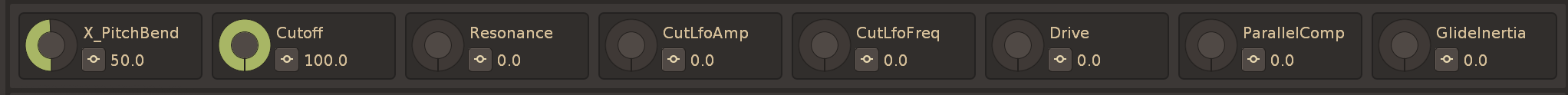

• 8 Macros (PitchBend, Cutoff, Resonance, Cutoff LFO Frequency, Cutoff LFO Amp (4+5 are used for autofilter like features), OverDrive, Parallel Compression, PitchBend Glide/Inertia) (set it to max, and your regular midicontroller pitchbend input will be very slow, set it to minimum, pitchbending will be immediate). For these, there’s a Default XRNI instrument being used, which comes with Paketti. you can of course replace it with a completely different XRNI - which will then get it’s sample overwritten on every load.

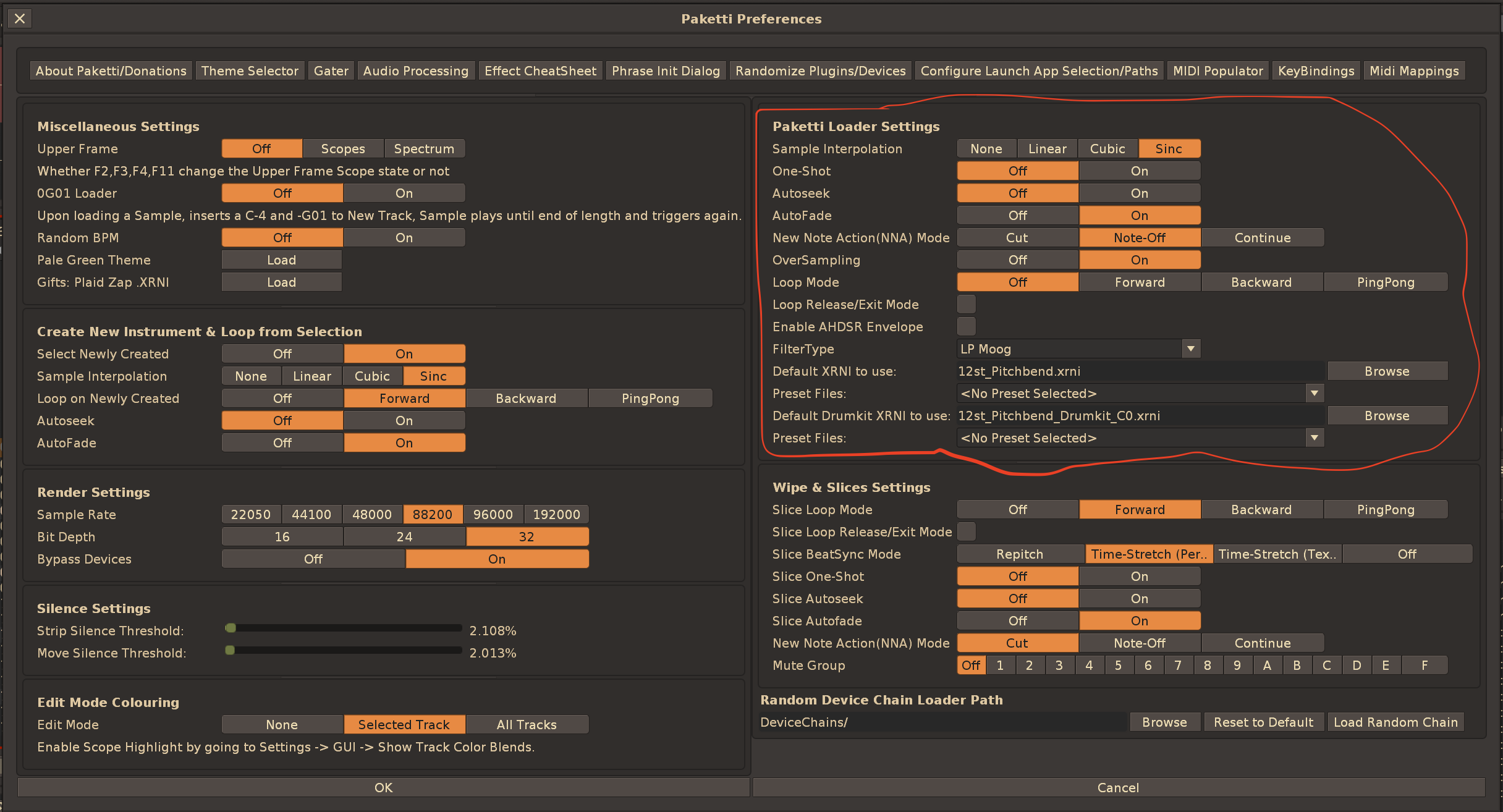

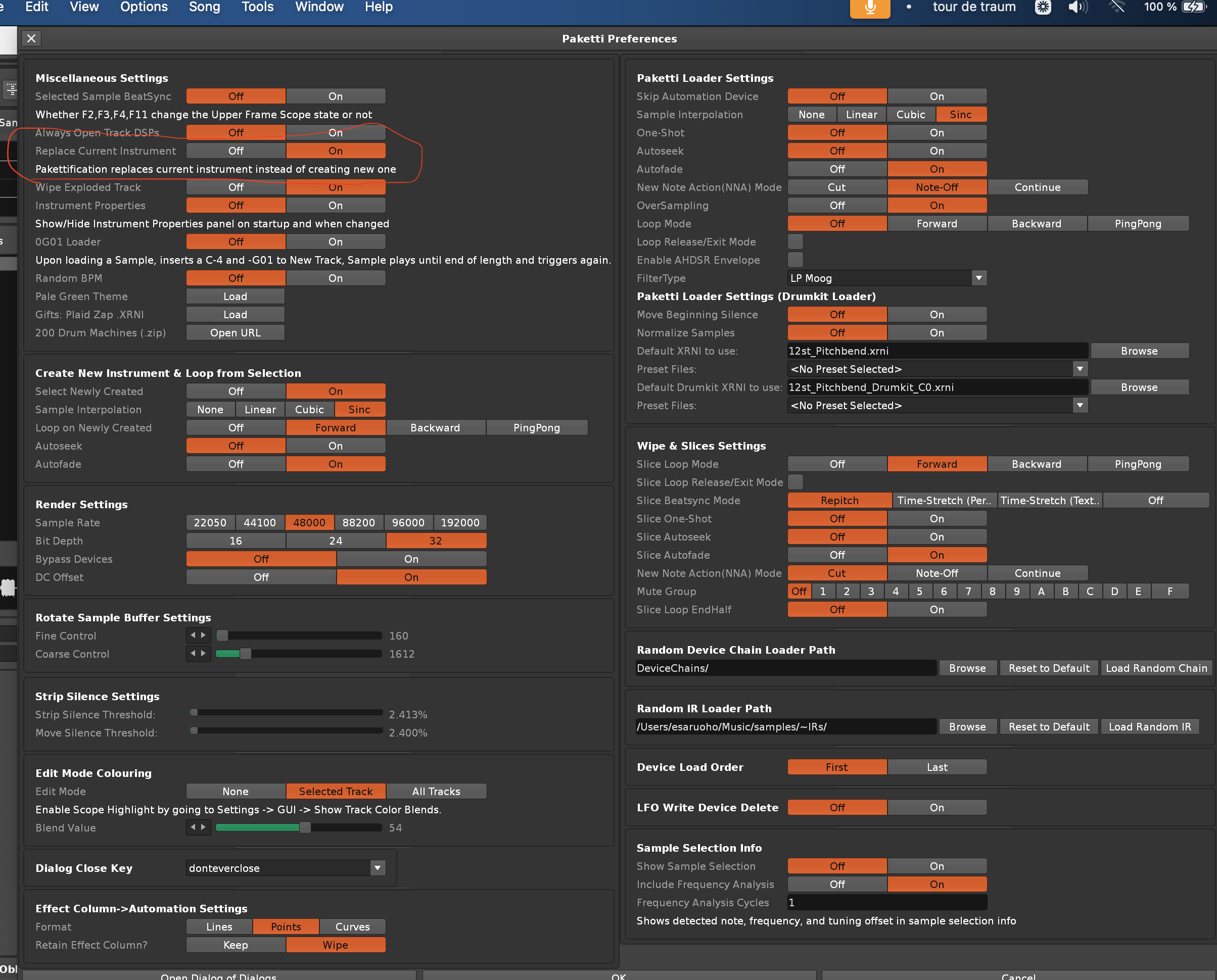

• Paketti Preferences “Paketti Loader” preferences, such as using your preferred loopmode, autofade, autoseek, oneshot, interpolation, New Note Action, selected FilterType.

If you pay close attention, you’ll also see a checkbox for setting the AHDSR Envelope. Yes, the Default .XRNI Instrument of Paketti also comes in with some Sample FX Chain settings. There’s a:

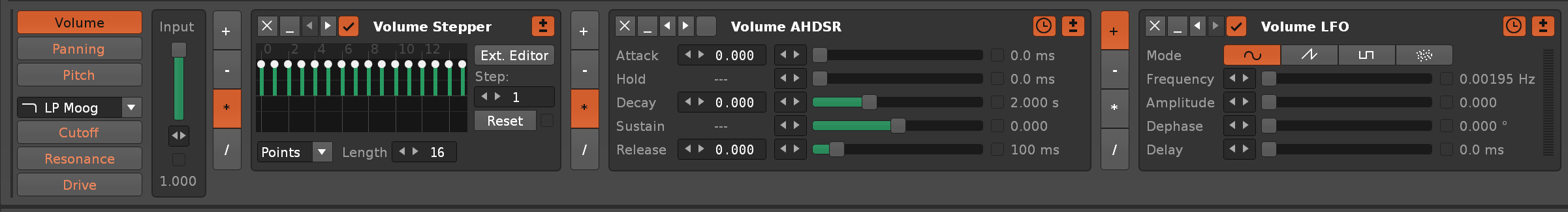

• Deactivated Mono device (Sample FX)

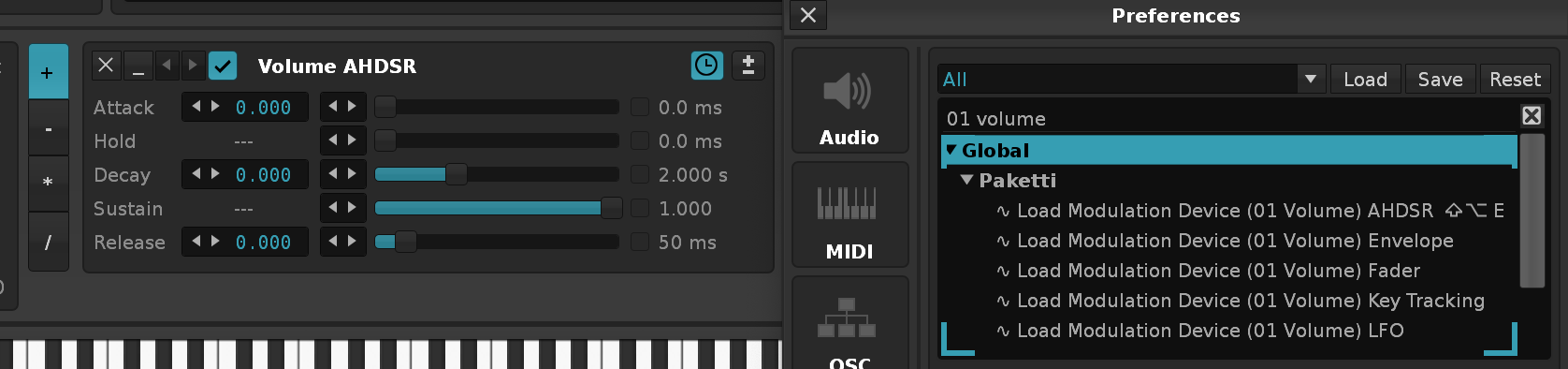

• AHDSR Modulation device

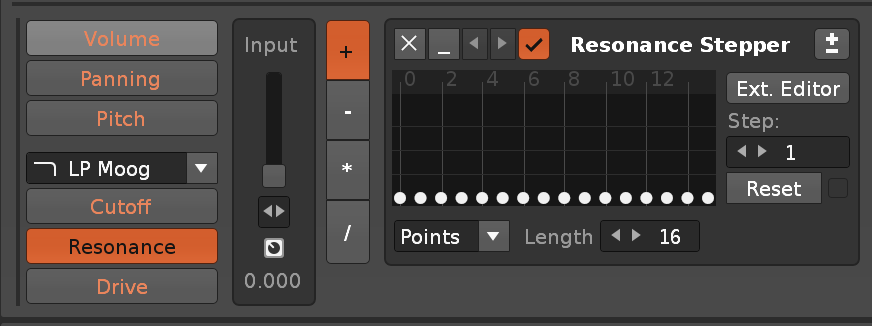

• PitchStep Modulation device

Some examples below:

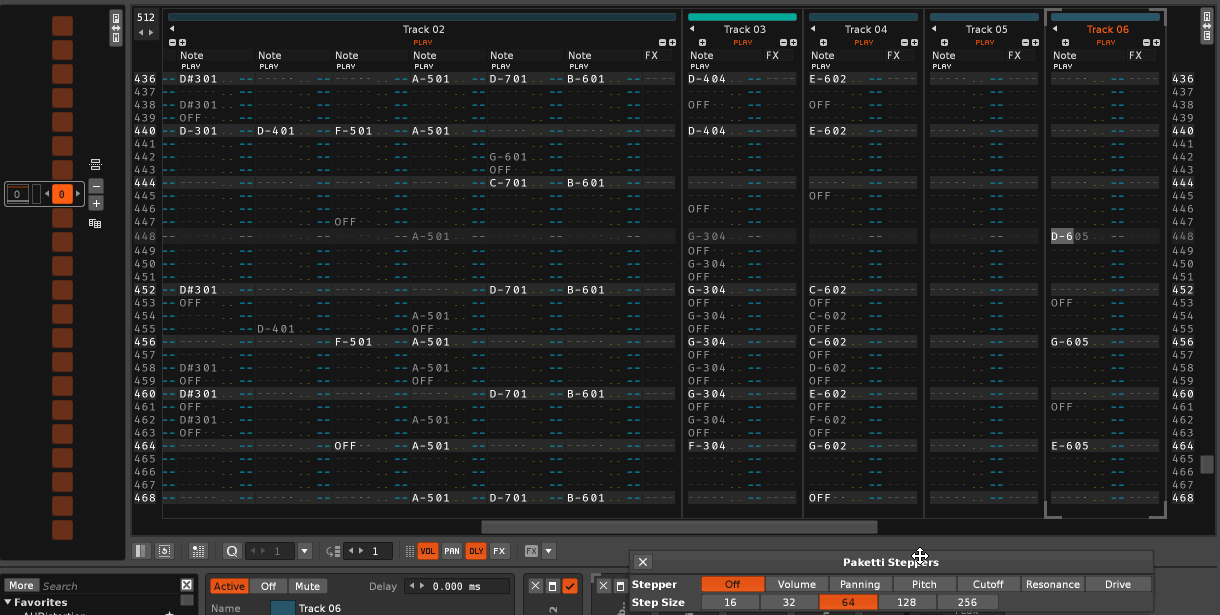

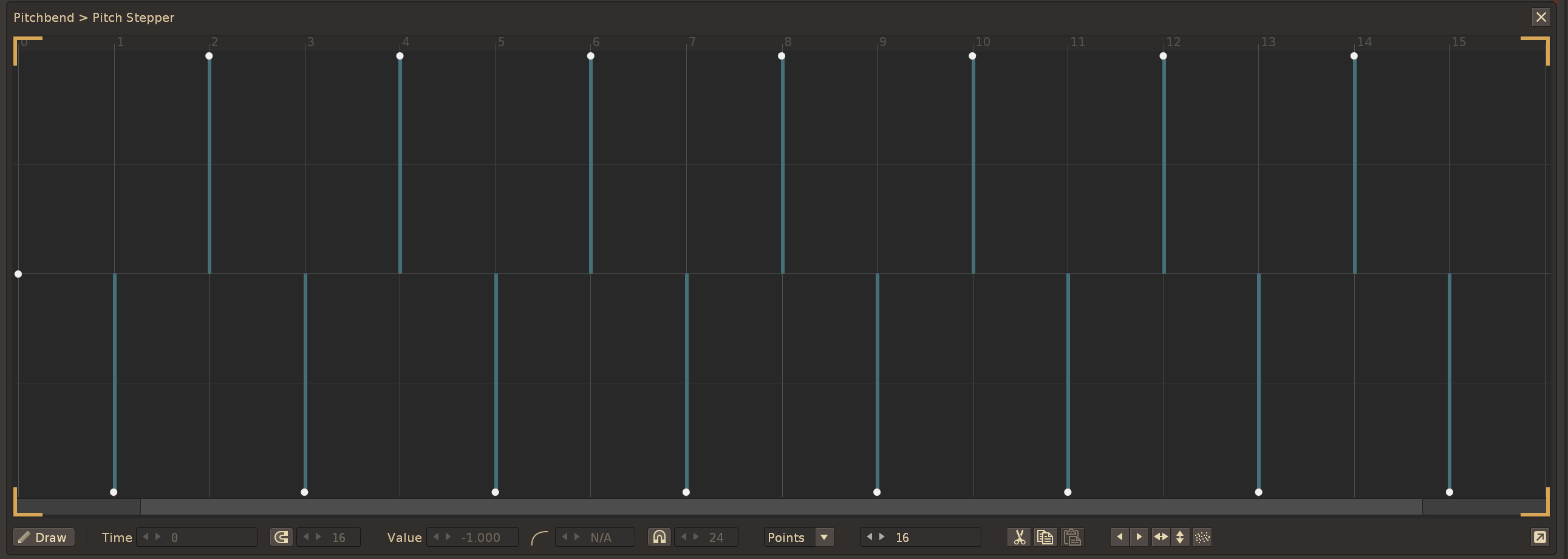

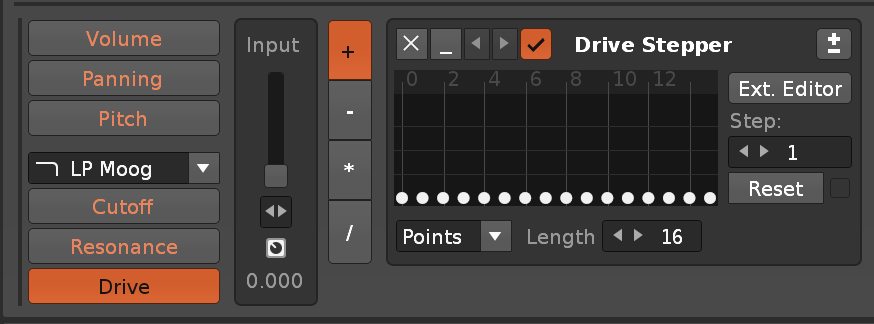

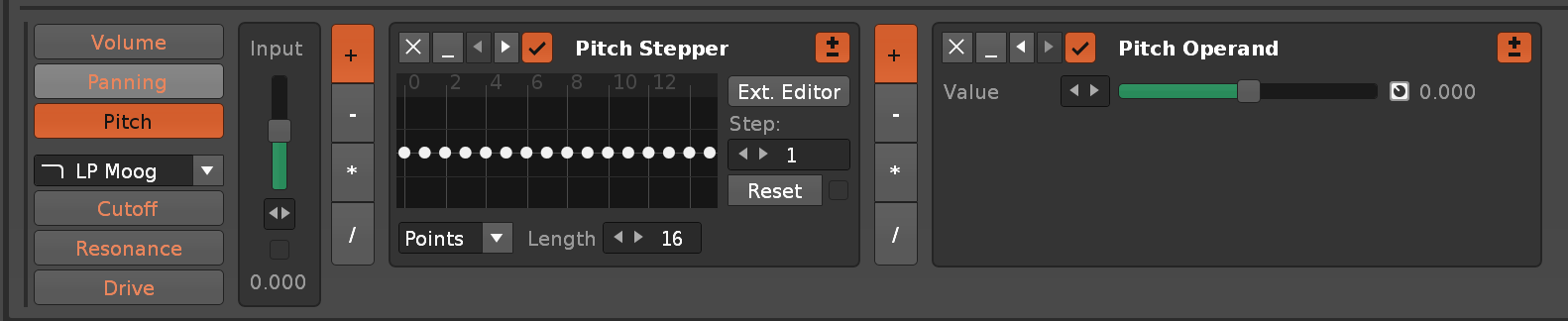

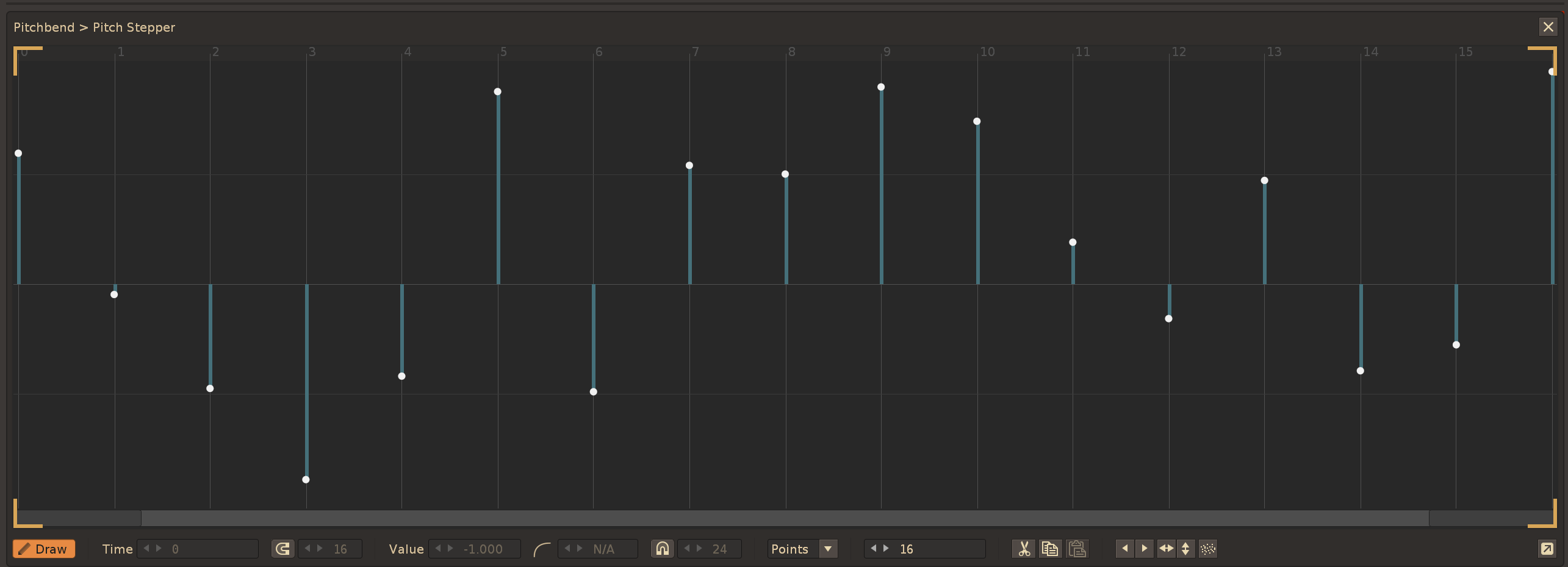

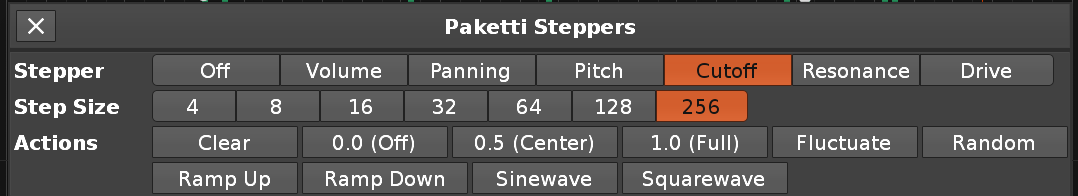

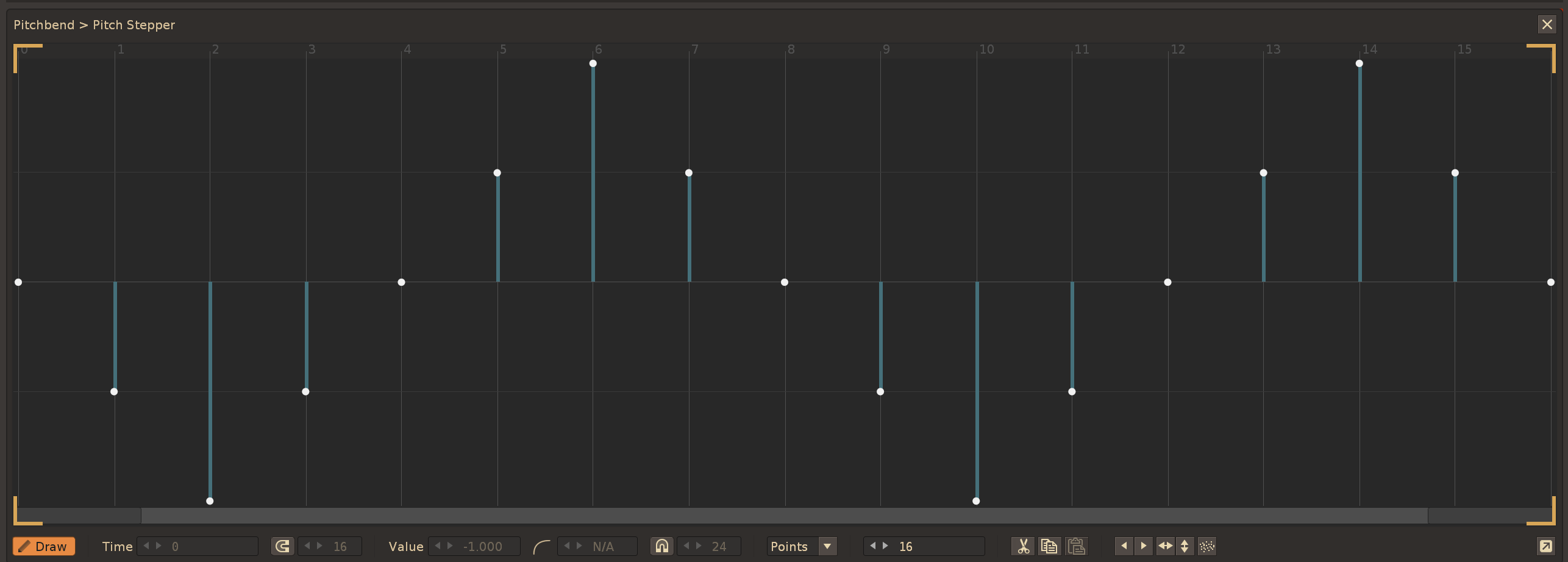

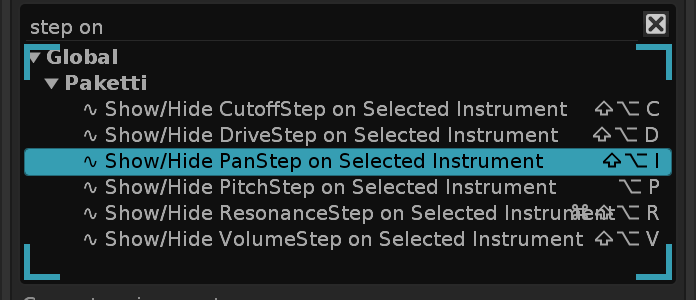

Why a Pitch Stepper? Because there are also shortcuts for opening the External Editor of the Pitch Stepper.

Go wild with the drawings!

The other shortcuts do these:

• Octave up & Octave down

• Octave up twice & Octave down twice (changing the minimum & maximum pitch to 24st)

• Randomize PitchSteps

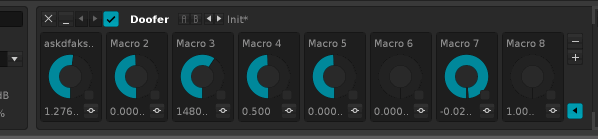

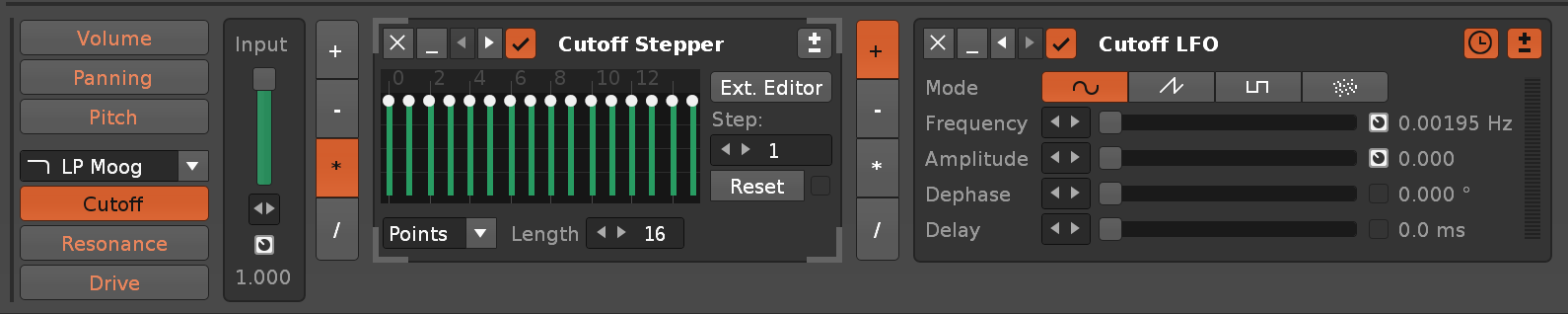

The *Instr. Macros device which is also added to the track you are on, allows you to directly start automating the Macro parameters.

Meaning, you would load a sample using Paketti, input a few notes to the pattern editor, and immediately be able to start drawing automation for any of the 8 macro controls. So you could for instance put in a drumloop, and start drawing a cutoff automation curve directly to modulate the cutoff parameter.

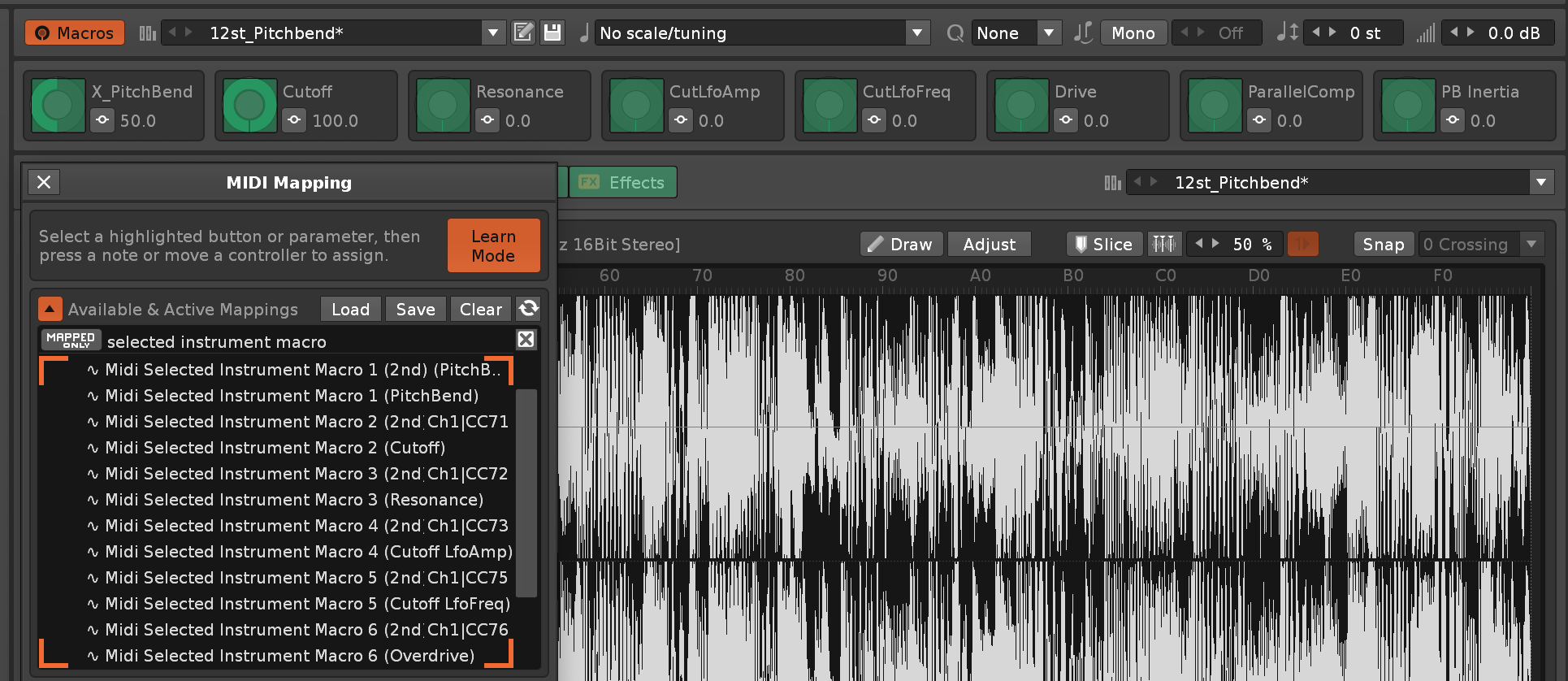

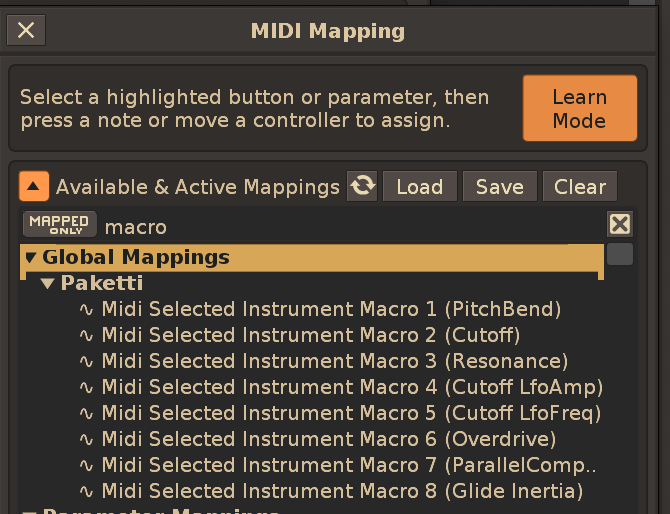

The 8 Macros are also available as a Midi Mapping like this:

The reason for adding these, is, so, that when you are on any instrument with the Paketti Default XRNI Instrument (or any instrument with any of the 8 Macros set up), the same 8 Midi knobs on your controller will control those 8 settings. So you can rest your hands on the knobs, select a different instrument, and keep crafting. These also, of course, apply to the DrumKit Loader - which we’ll cover next.

The DrumKit loader loads a max of 120 samples into the instrument. Select more? Only loads 120 samples. The drums are mapped automatically from C0 to B9.

Saving Samples

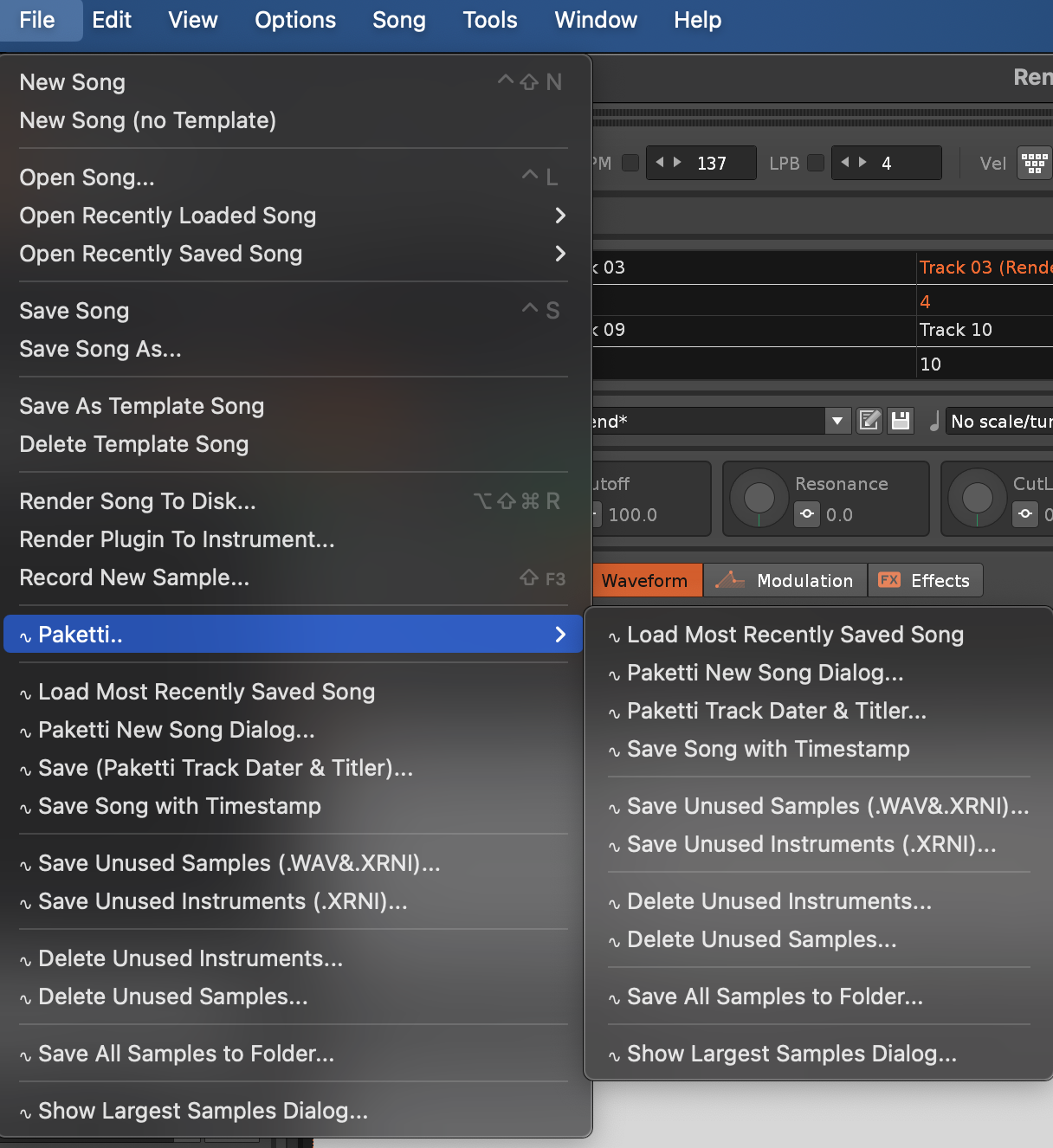

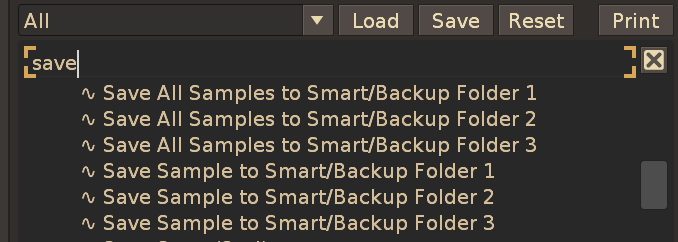

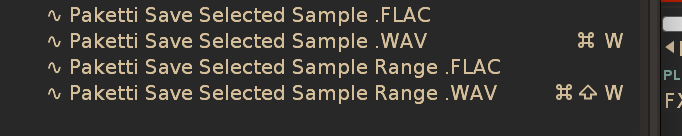

There are Midi Mappings, Keyboard Shortcuts and Menu Entries for Save Selected Sample .WAV & Save Selected Sample .FLAC. There’s also Save Selected Sample Range .WAV & Save Selected Sample Range .FLAC. The Sample Range saving is from Fast Tracker 2.

There’s also a method for saving all Samples to a Backup Folder - which are user configurable - meaning, you can have 3 different Backup Folders, and thus three different shortcuts for saving either Selected Sample, or all Samples to the Backup Folder.

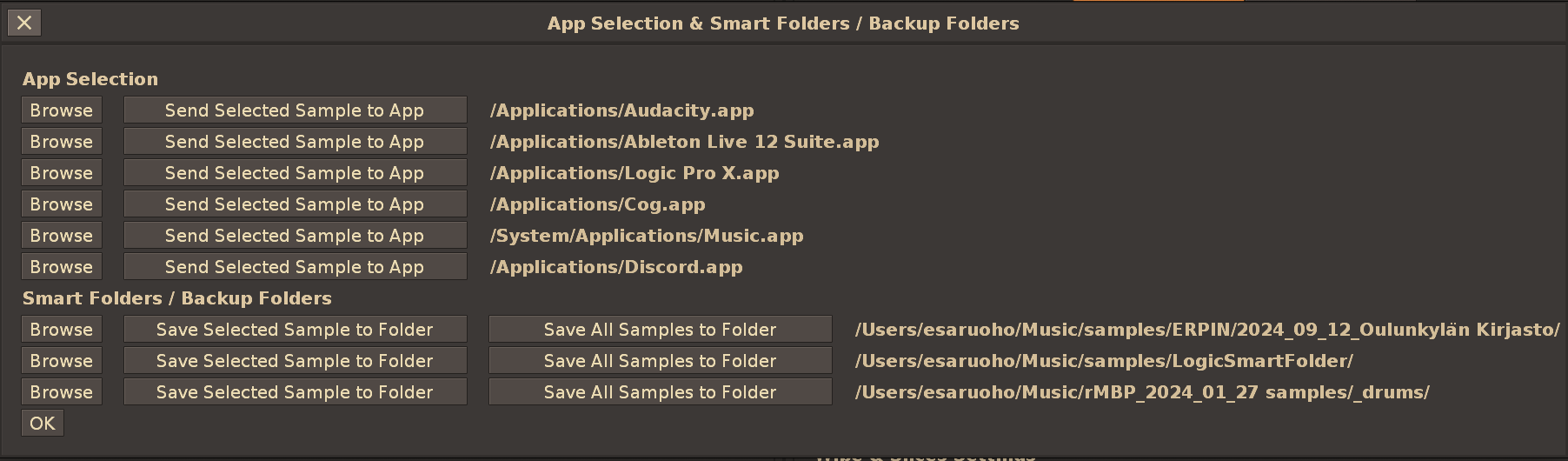

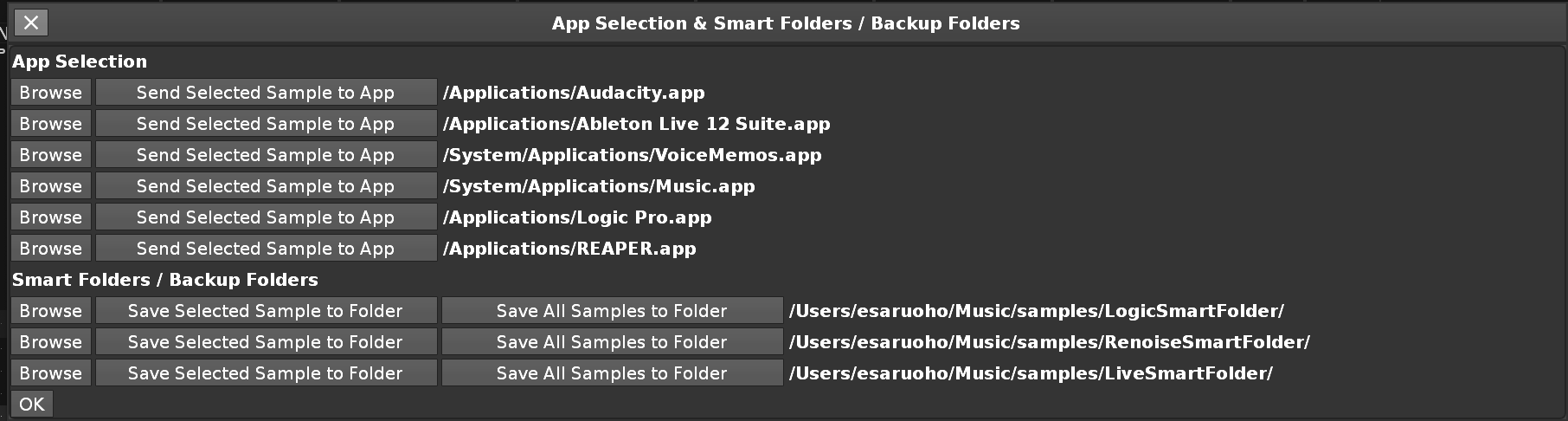

The dialog where you get to select the Backup Folders is the “Launch App Selection Dialog”, pictured below:

Sending Samples to other apps

If you carefully look at the following dialog:

You’ll see there is also a way of sending a selected sample to a specific app! This means, you can set your preferred programs, and Renoise / Paketti will save the selected sample to a temporary folder, and start the app and load the sample.

Note well, Bitwig developers: Your app does not support sending files to it via bitwig.app file.wav. Please fix.

Loading Devices and Plugins

Another step in the abandoning / circumventing of Native Renoise loading methods, is the doing away with the usage of the Track DSP Device Loading.

Instead, Paketti introduces Keyboard Shortcuts, MidiMappings for loading your preferred VST,VST3,AU,LADSPA,DSSI,Native devices to both Track DSP Chains and Sample FX Chains.

There are also Menu Entries for loading your Native devices (including the Hidden / Legacy effects), if you’re mouse inclined.

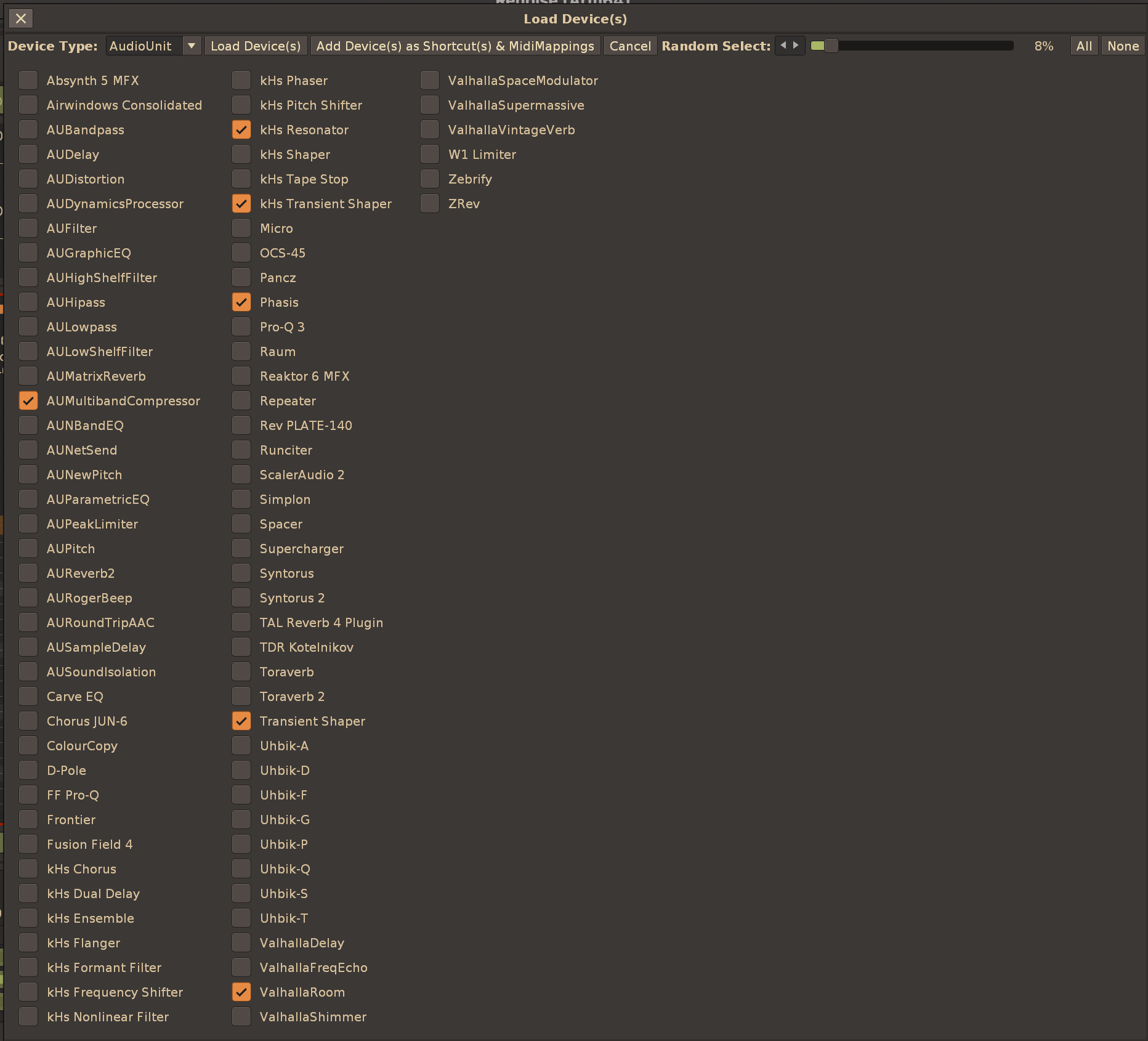

By going to Tools -> Paketti.. -> Plugins/Devices.. -> Load Devices Dialog… and ticking your favorites, clicking on the Add Device(s) as Shortcut(s) & MidiMappings button will result in, from now on, the selected devices being available in Keybinds and MidiMappings. Set them up, and away you go!

This means that you can, for instance, (in my usecase) press shift-q e r t z a v and out come 7 devices to the selected track. Same with midibuttons, after selecting your favorites, you can use the midi mappings to set up midi controls for loading your desired device onto your selected track. Trust me, it’s fast, fluid and just feels natural. Set them like you want to, and throw in your devices.

There are some additional details, such as: the external Devices are loaded in minimized mode, so they don’t take up extra space. The Renoise Native devices are not loaded in minimized mode, because the parameters are displayed there.

And the more important detail: the External Editor is automatically opened!

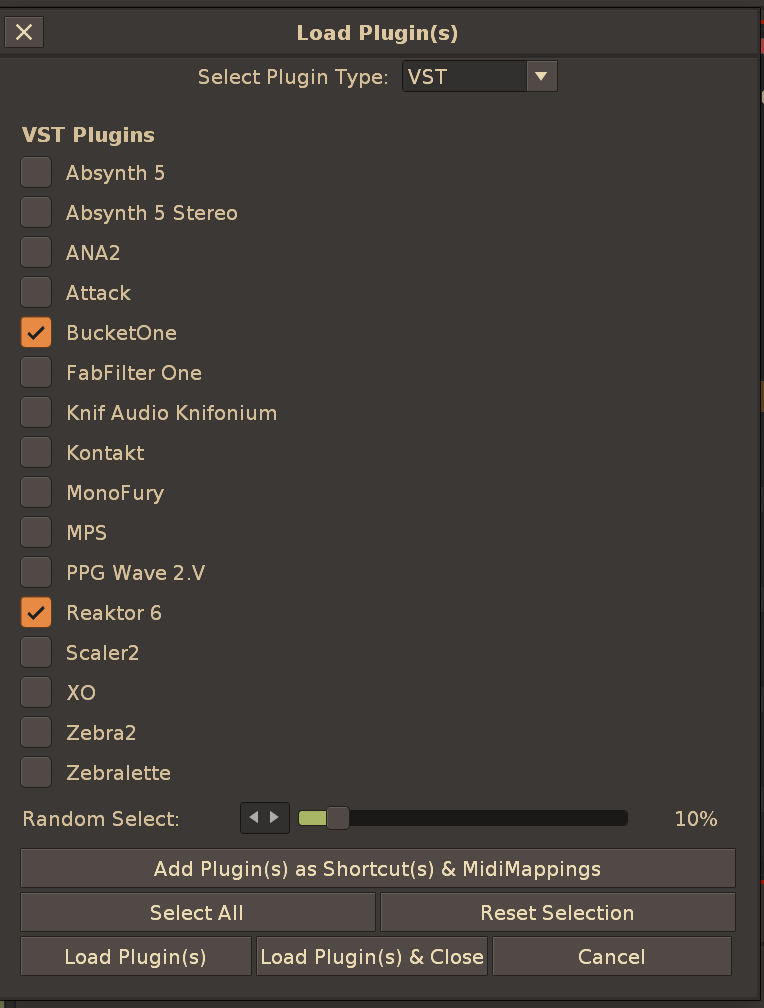

The same thing exists for loading Plugins, go to Tools -> Paketti.. -> Plugins/Devices.. -> Load Plugins Dialog…

Same logic. Pick the ones you want, add them to the Paketti Preferences - they’ll always be there.

The extra logic with Plugins, is, that it wouldn’t make much sense if they overwrote the current instrument - so, a new instrument slot is added, every time you load a plugin. And the External Editor is made visible. So you can just start tweaking away.

Wipe & Slice

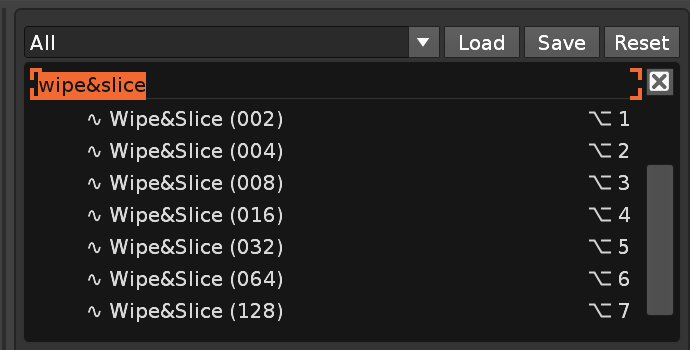

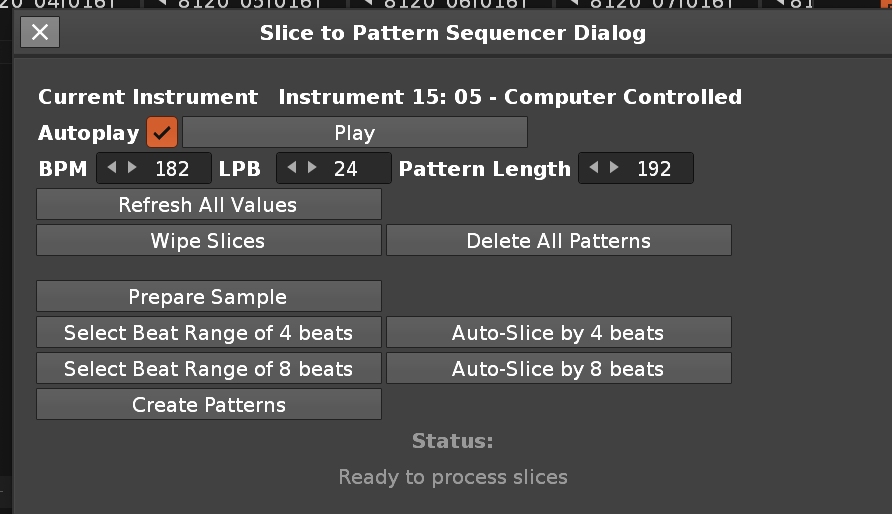

Those who like BeatSlicing, there’s a mathematical slicer - which takes your loop, and, depending on which shortcut you pick, slices it in half (two slices), or 4 slices.. to max 128 slices. meaning if your loop already loops well, you can just split it into 16-32-64 slices and start drumming away at the loop.

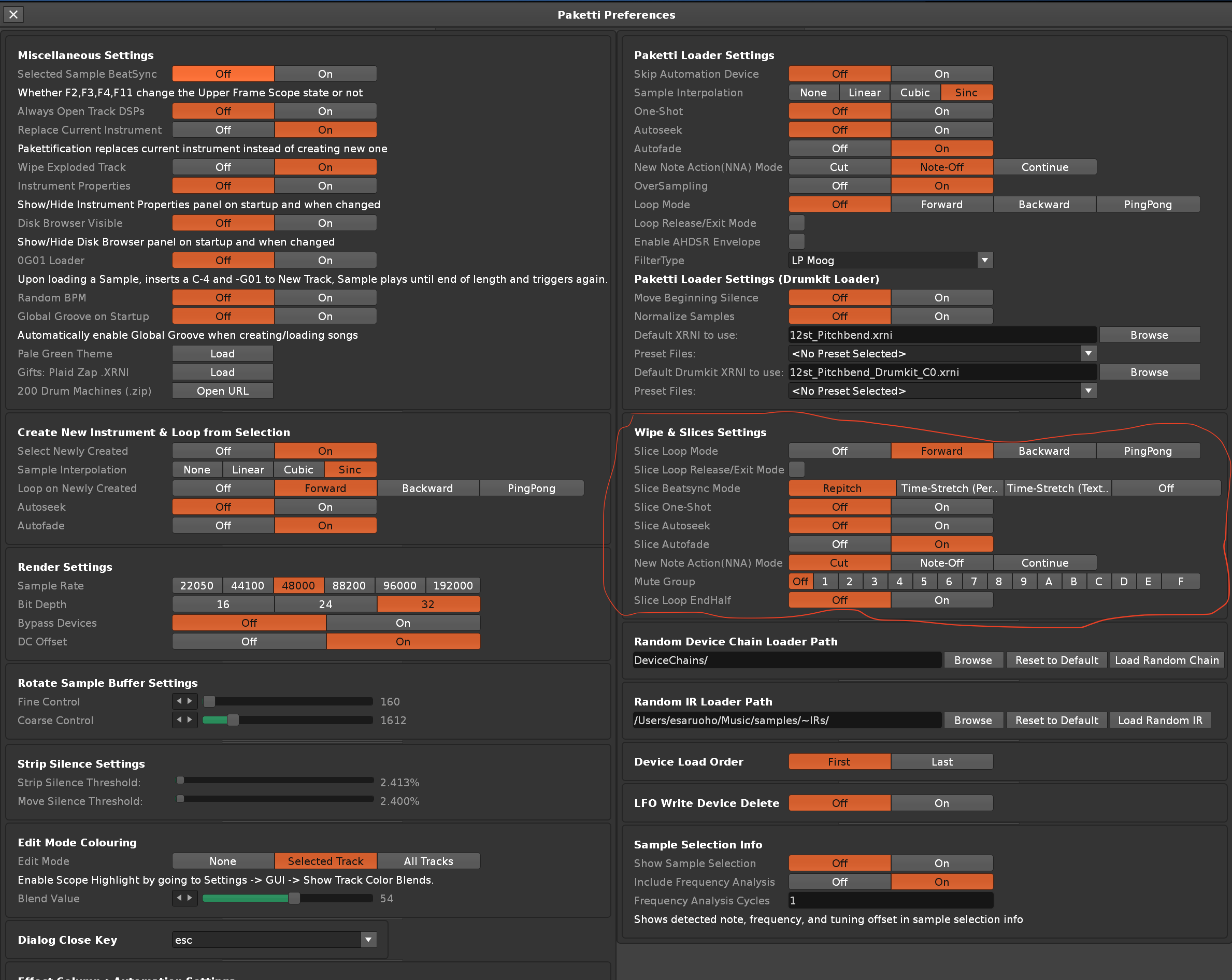

There are additional configuration steps in the Paketti Preferences dialog:

The BeatSync Mode can be set, also, and if, for instance, you set a 256 BeatSync Line setting for the sample, and chop it in 16 pieces, then each Slice will play at 16 BeatSync - maintaining the pitch and speed that you would expect. All this is taken care of behing the scenes.

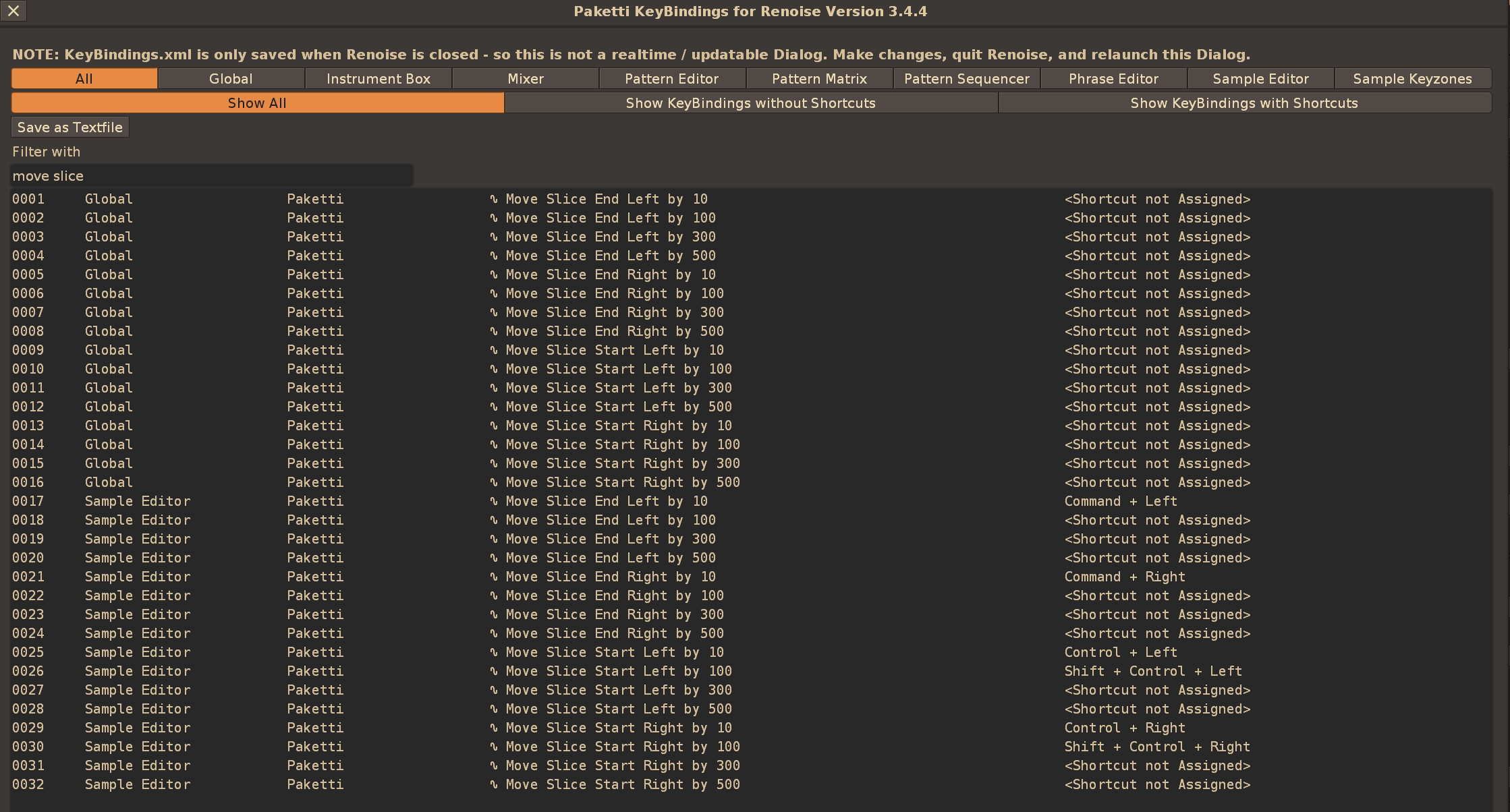

MPC-like Slice start + end alteration with Shortcuts / MidiMappings

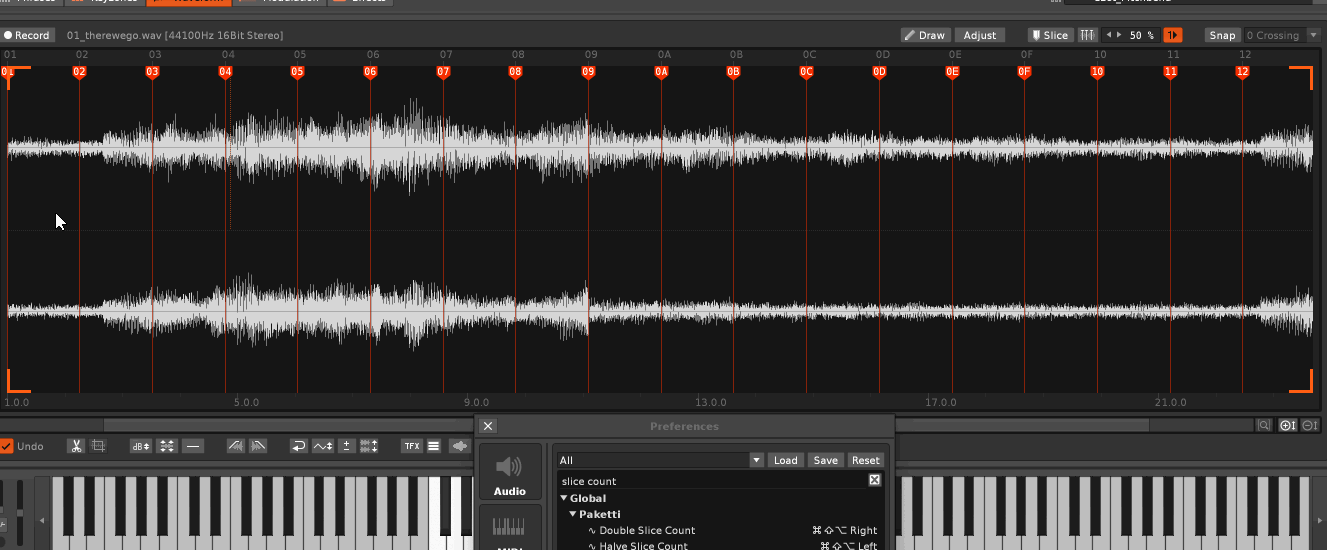

But Slices aren’t always precise. So there are methods for adjusting the Start and Endpoint of the Slices, much like MPC does it. This means that you don’t need to keep viewing the original sample, zooming in, adjusting the Start/Endpoints, zooming out, moving a bit, and then doing the same thing like an automaton. Just look at the Slice, and change where it starts and ends.

Here are the shortcuts - and examples of how it could be done.

And here’s a little .gif of what it looks like:

Isolate Slices

While we’re on the Slice topic, there’s also Isolate Slices to New Instruments, which takes all the Slices in your Instrument, and creates new Instruments below it. And if you were on, say the Slice that was a Snare - isolate slices, you’ll still be on the Snare. Of course, the Paketti Default .XRNI instrument is introduced for each slice.

TODO (Unfinished)

Freeze & Flatten a.k.a. Clean Render Selected Track or Group.

there’s a Clean Render Selected Track / Group. this will solo the selected track, render it as a wavefile, create a new track (named with a matching title such as “Bass (Rendered)” (if your original track was called Bass, input C-4 to the newly created track, ingest the 8 macros to it, mute the original track, collapse the original track, and if you select it, also bypass the effects in the original track. and it’s ready to be automated, by default, too. if you have a line input device on the track, instead of “Highest” diskwriting speed it will switch to “Realtime” - meaning, if you have incoming audio being processed through renoise effects, that incoming audio will be recorded to the new instrument, with the effects. perfect for external synthesizers being controlled by midi, for instance.

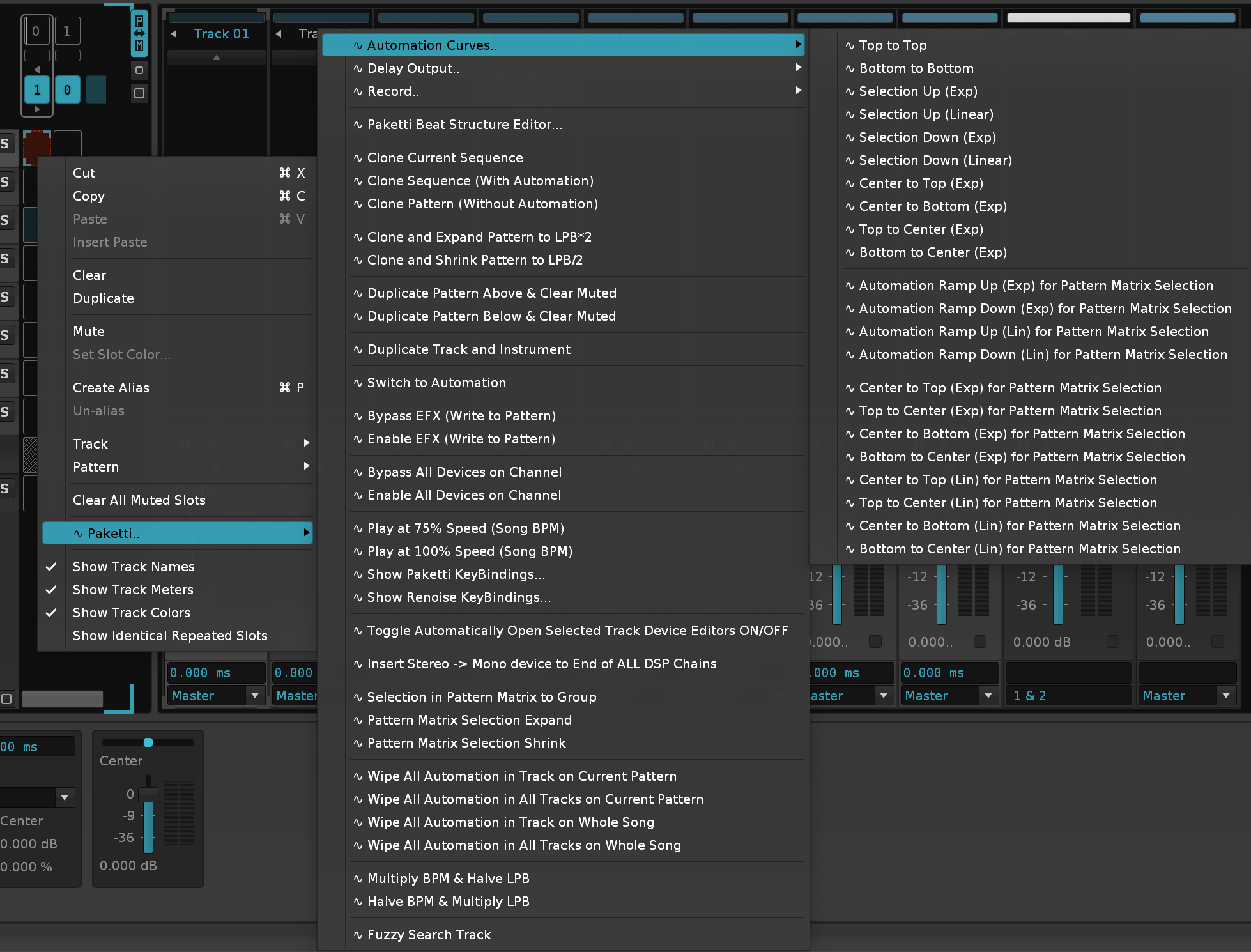

Improved Automation drawing, including multi-pattern automation.

since the renoise automation drawing is quite limited, i’ve added midi shortcuts and menu entries for drawing curves up/down (exponential, linear), and also added logic that if you’re trying to do an “exponential to max” curve on a pitchbend/panning automation lane, it will be drawn from the center to the top, instead of from the bottom to the top. there’s also multipattern automation drawing, meaning, you make a selection from pattern matrix and it will draw an exponential curve or linear curve from patternStart to patternEnd.

there’s also midimappings for automation start and automation end, and a third midimapping knob for deciding which automation curve is drawn and from where to where. so you can pick an automation area, and use a knob to decide what the curve would look like.

i’ve also introduced a “Draw Automation to Selected Automation Parameter”. this means, you’re in ANY automation lane whatsoever, have playback on, set record on, set follow pattern on, and turn the knob == result == you are drawing automation to that lane. you don’t need to map the midi anywhere in the track device or anywhere, just map it once to the “automate selected parameter” and just select any parameter and just draw in. it also works with selections, meaning, you select a section and draw with the knob, and it writes to the section (this with follow pattern off, of course).

Paketti Theme Selector

This dialog comes in pre-populated with 518 themes, and you can pick your favorite themes out of the mix, and have Renoise randomize through the favorites (or all themes). So every time you boot up Renoise or load a new song, a different theme will load. Great for discovering new themes.

https://public-files.gumroad.com/i8xgettth9an6ibvc6l8oto44b05

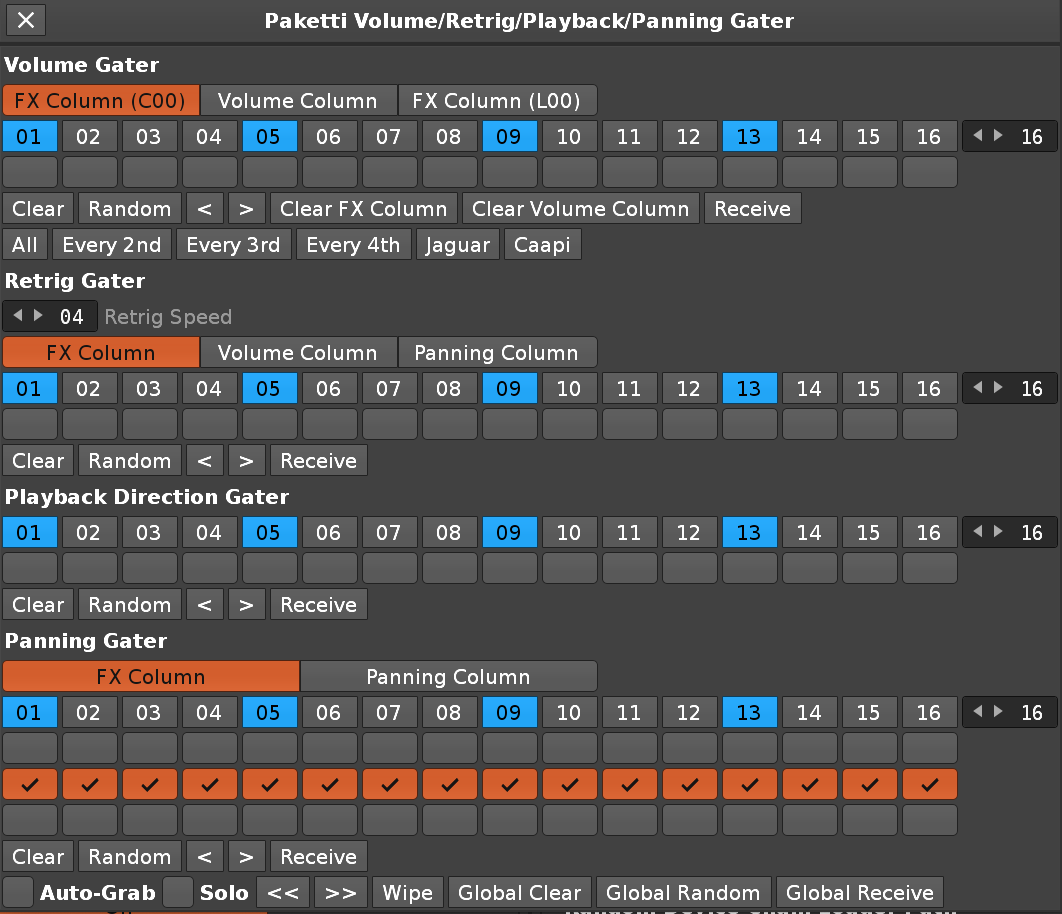

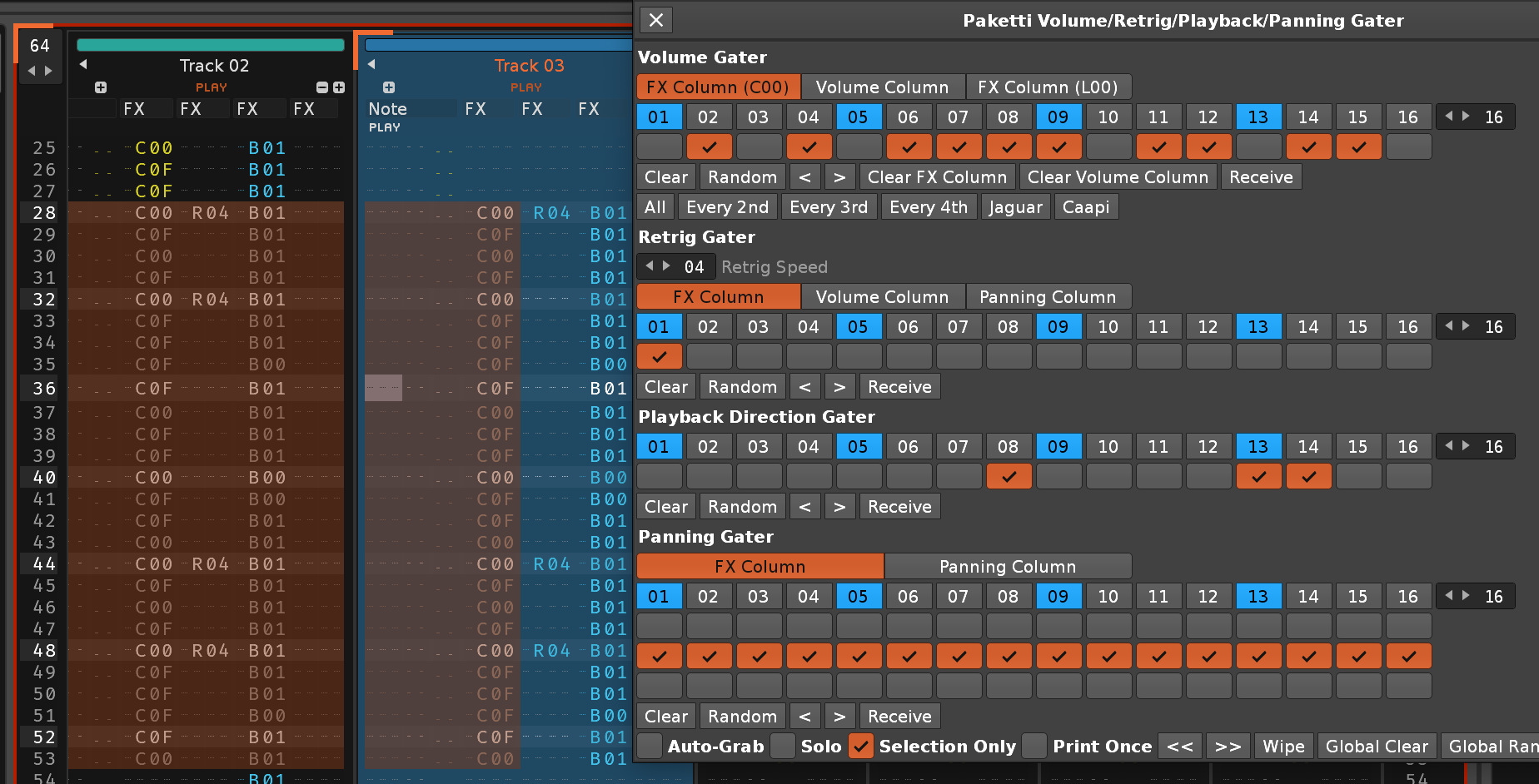

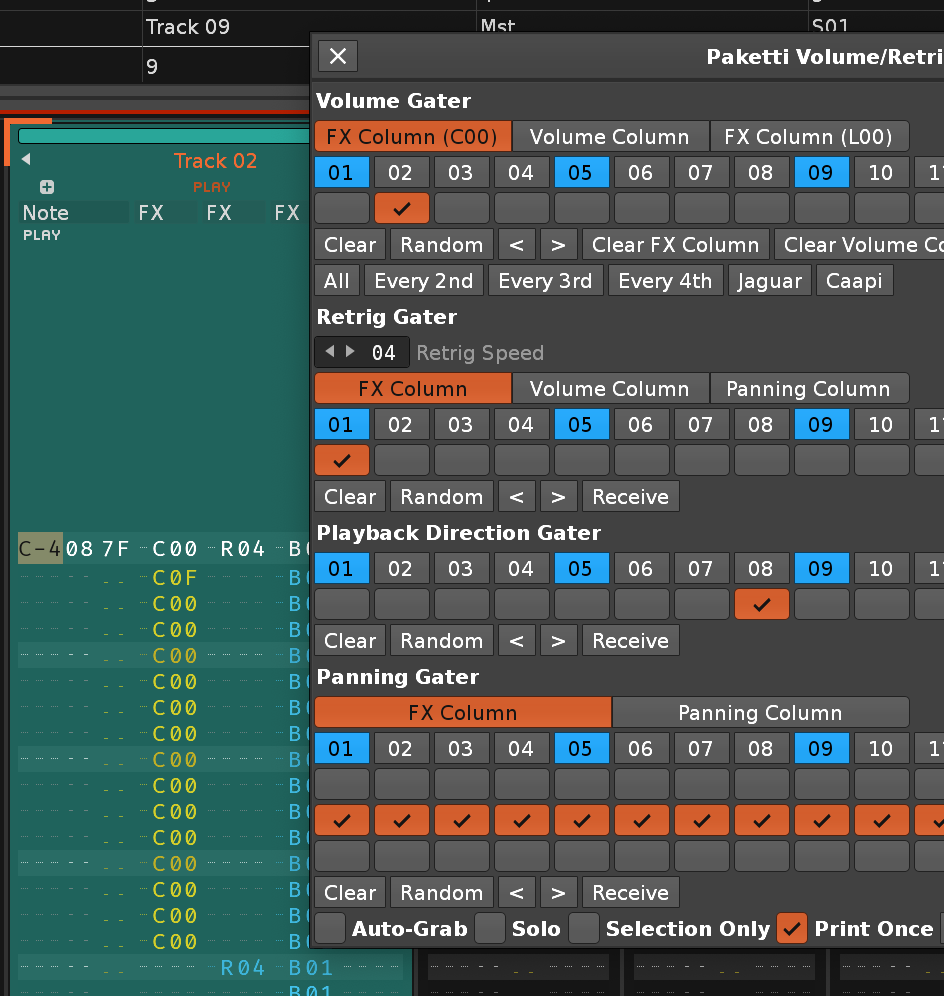

Paketti Gater

This allows directly writing in looping volume, retrig, backwardsplayback and panning gates. E Each of these rows have their own steps, min 1 max 16. so if you have a 512 row pattern and use a 16 row volume gater, then it’ll keep looping till the end of the 512 row patterns. or if you have a 3 row panning step, those 3 steps will repeat until the end of the pattern, and so on. these are also designed to type directly to the pattern editor, either for volume control of sample, or volume control of the mixer channel.

https://public-files.gumroad.com/w9a7t5n7ya2or8bpe8s795x7yn47

Example:

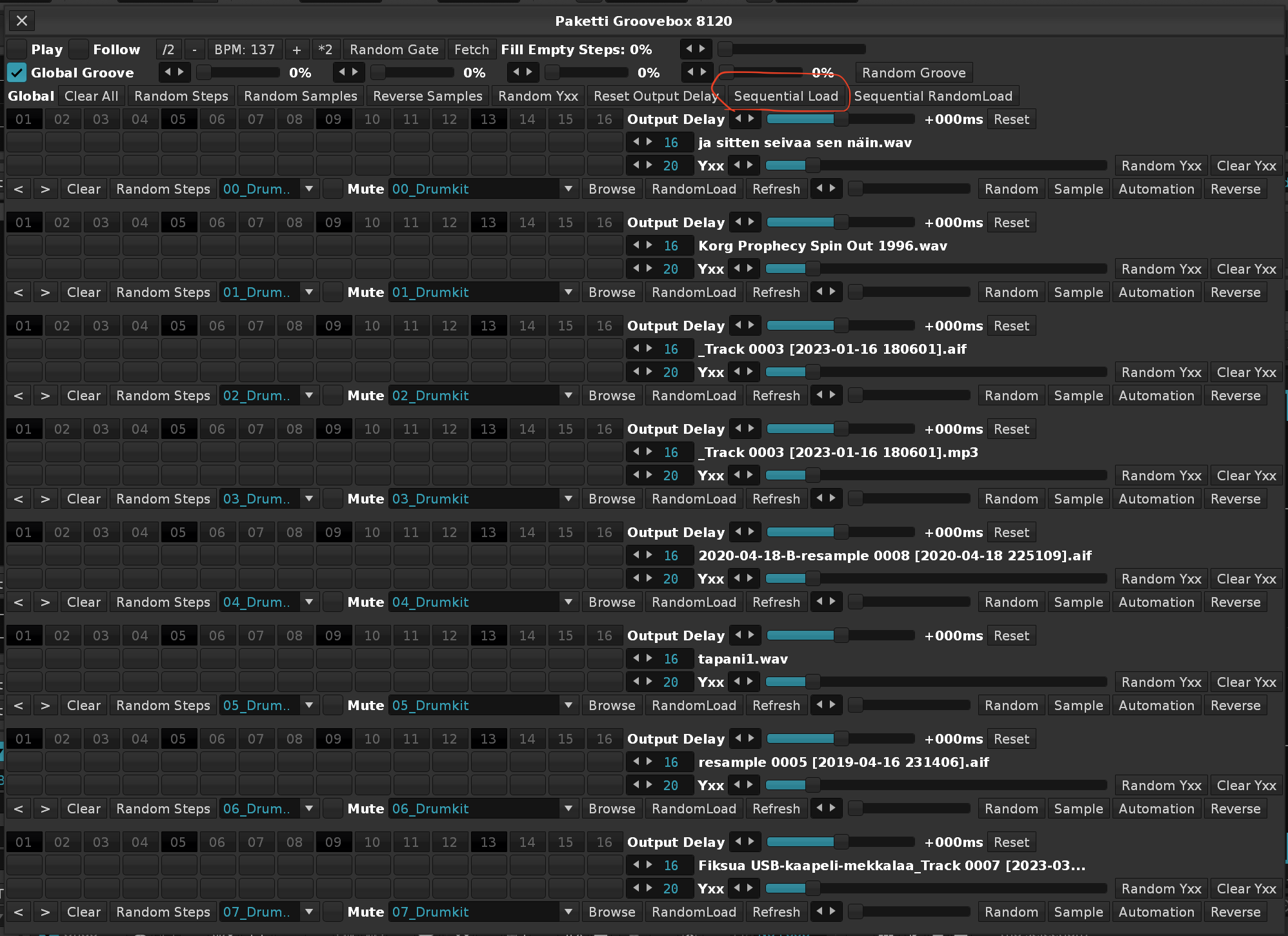

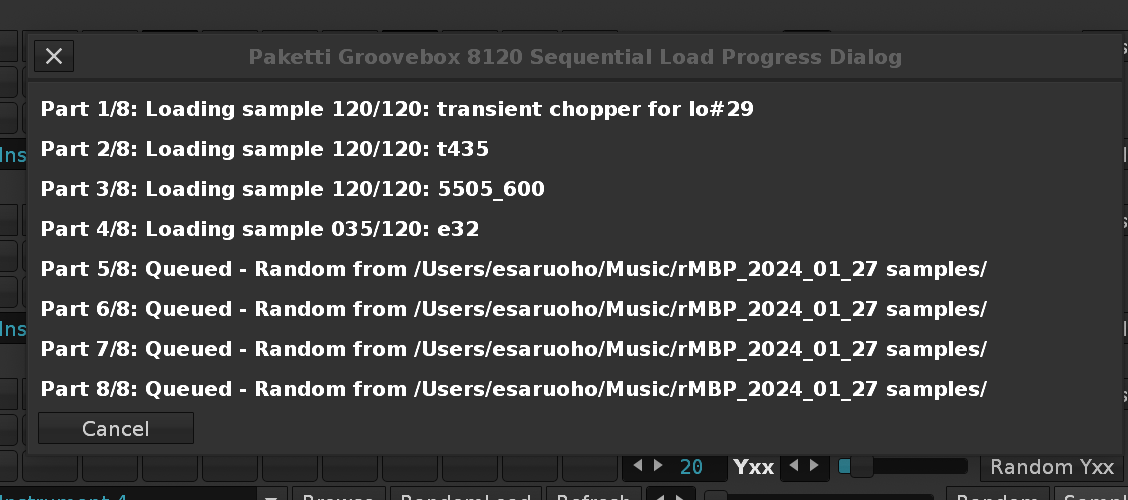

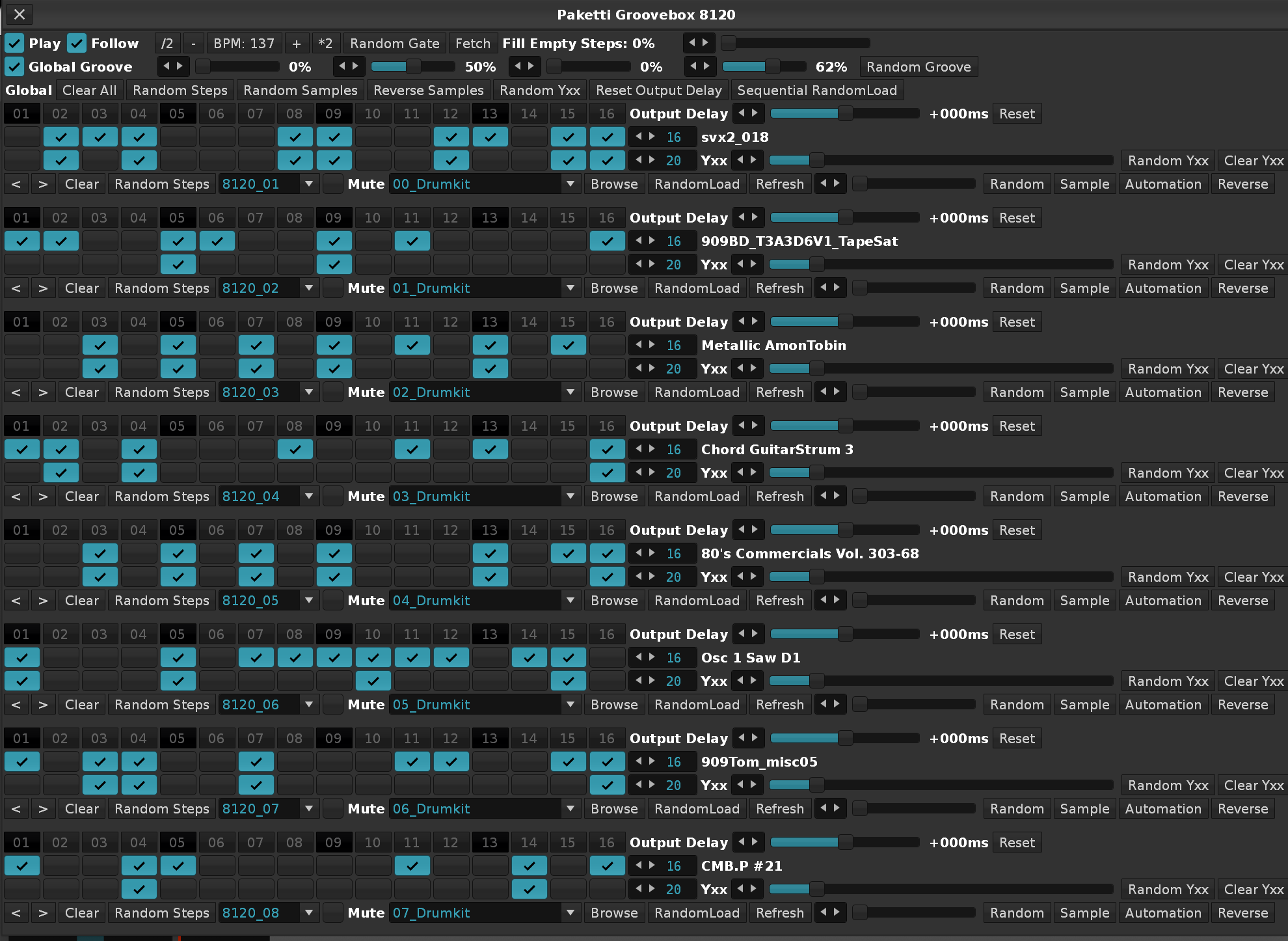

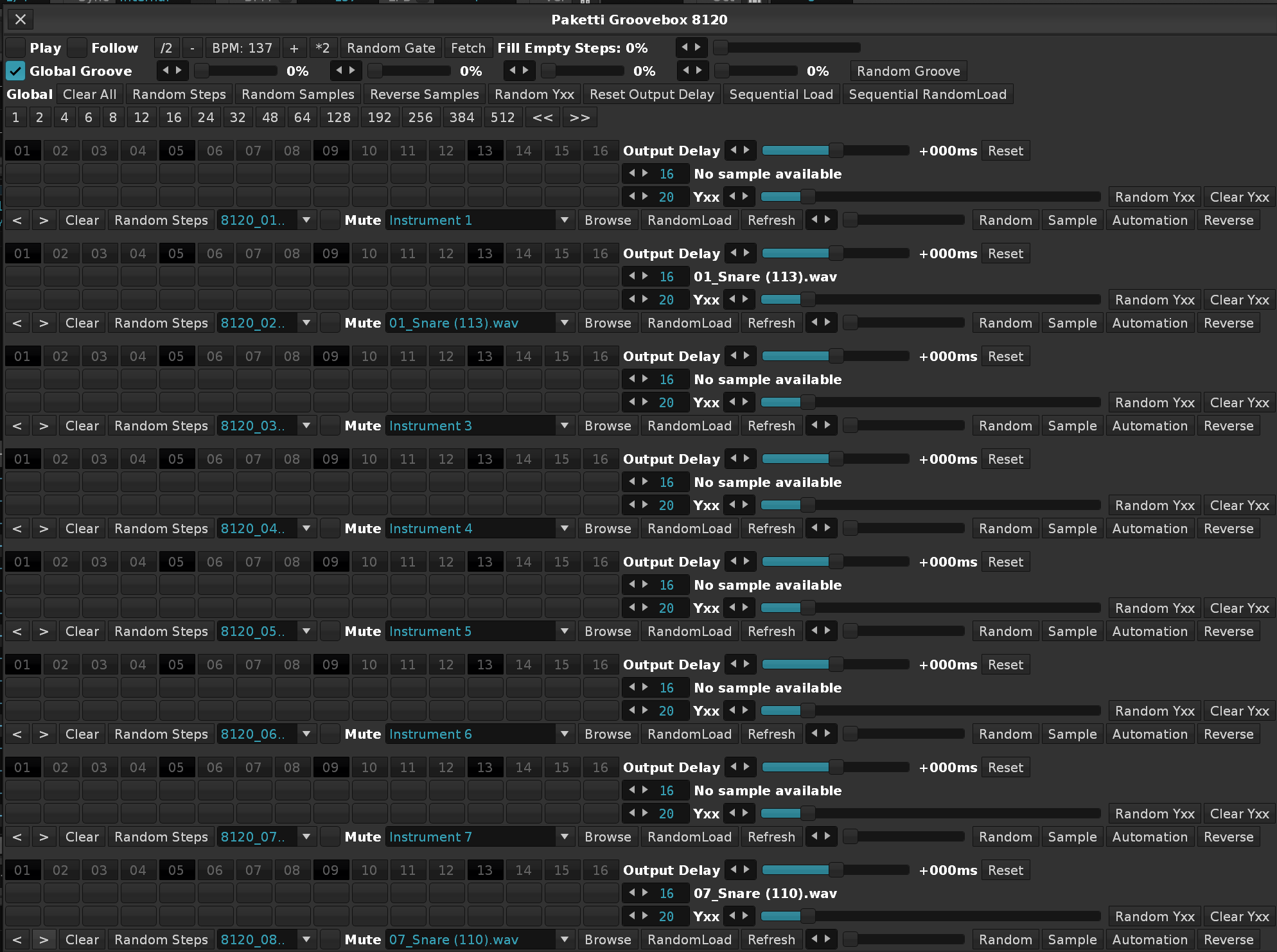

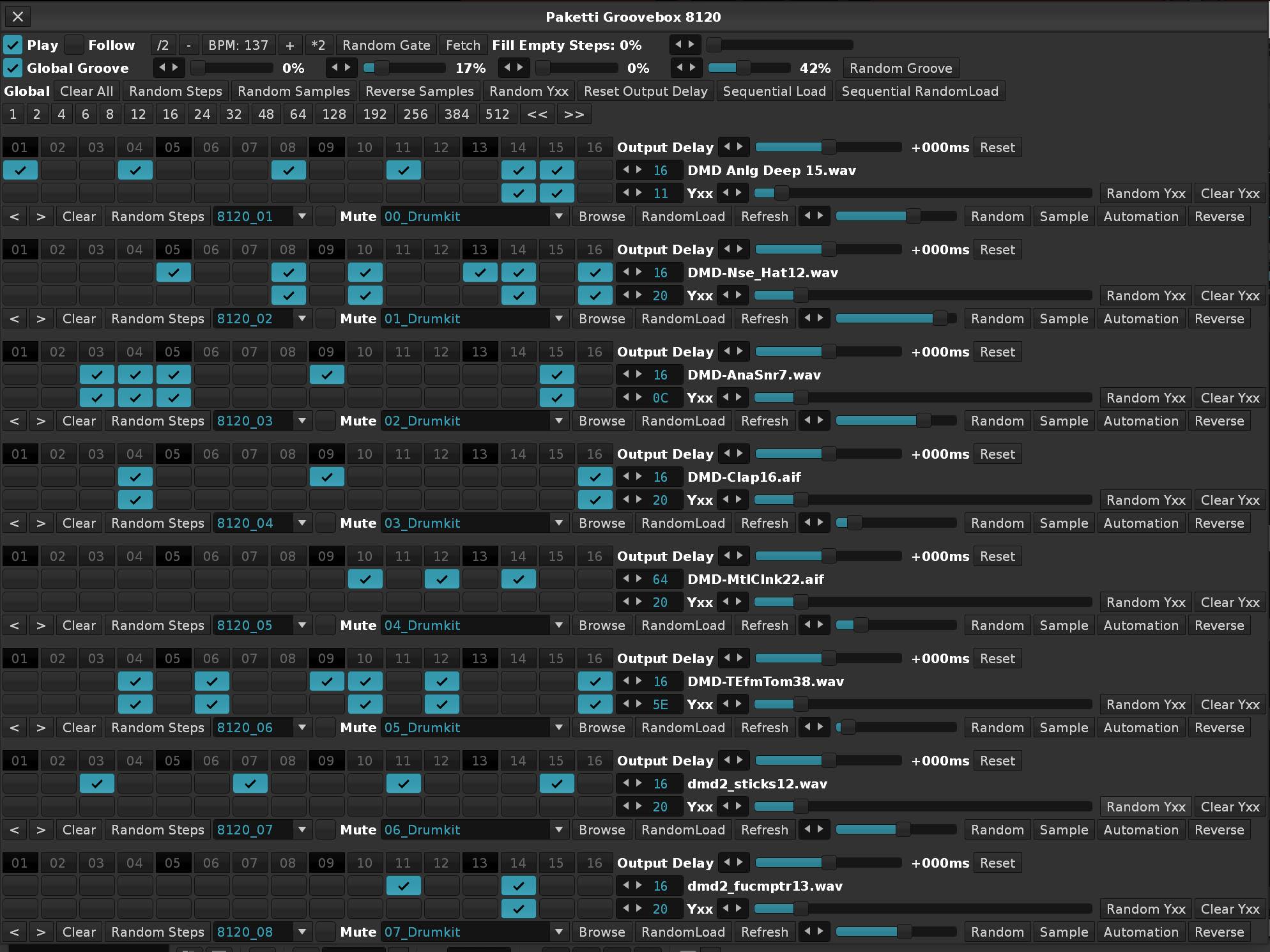

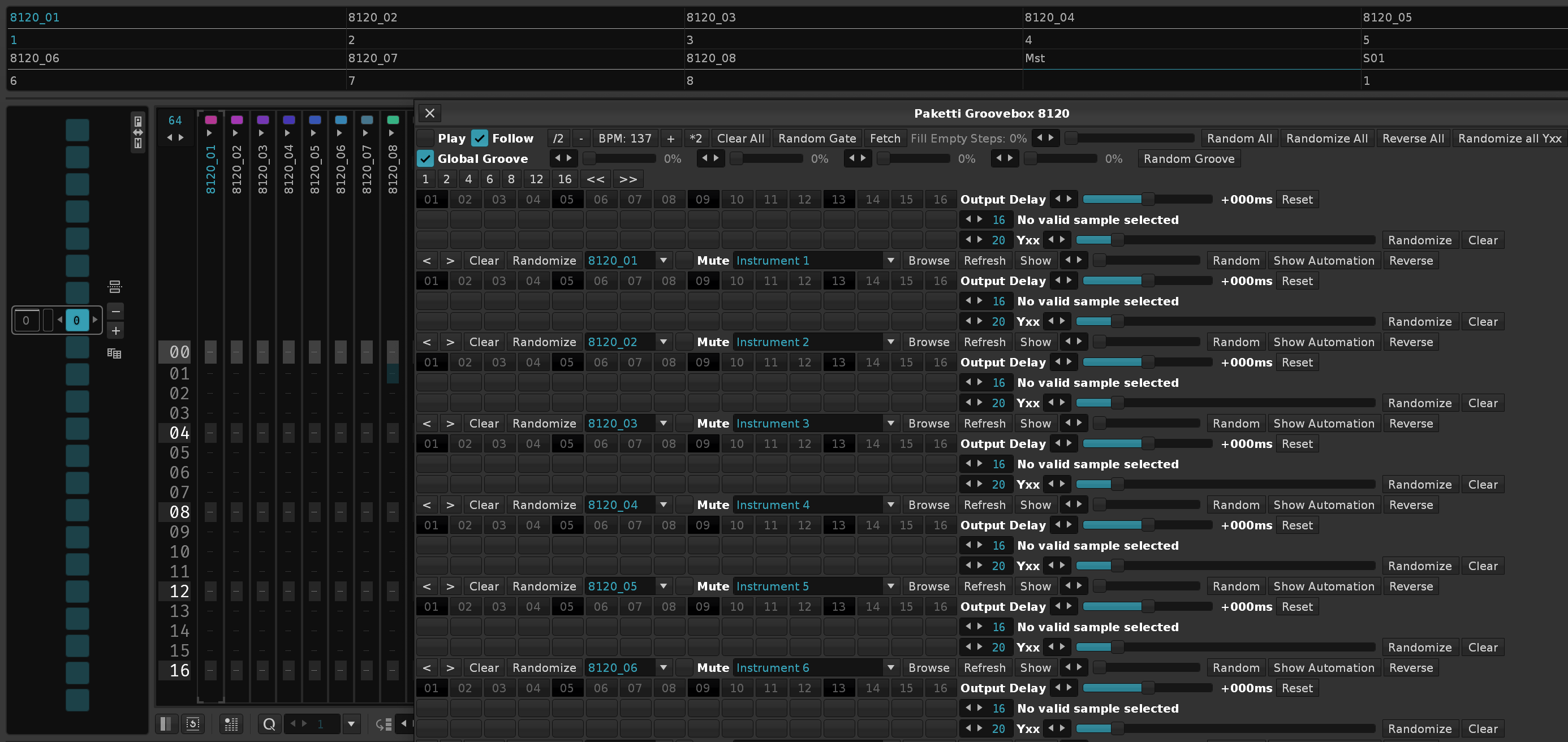

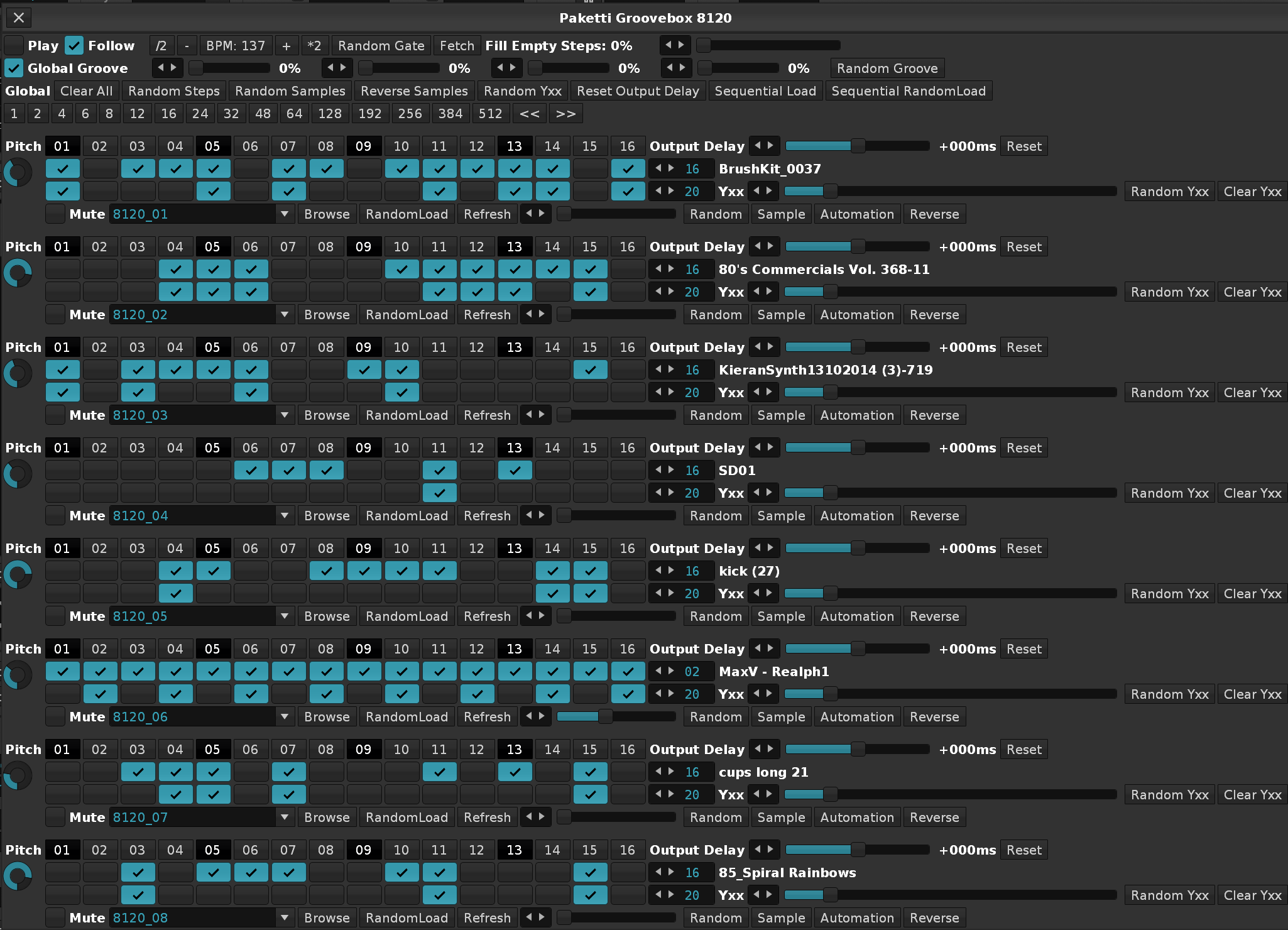

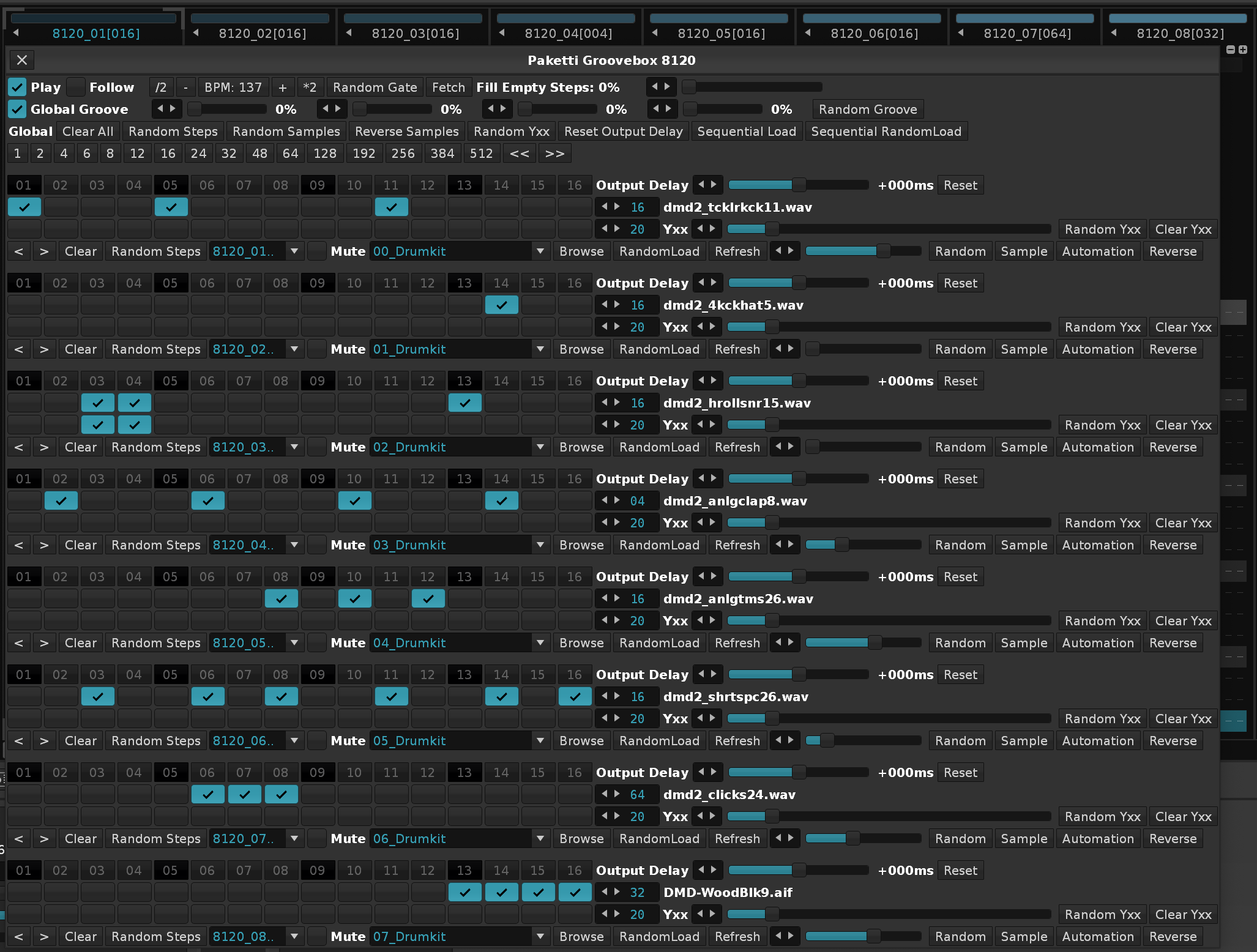

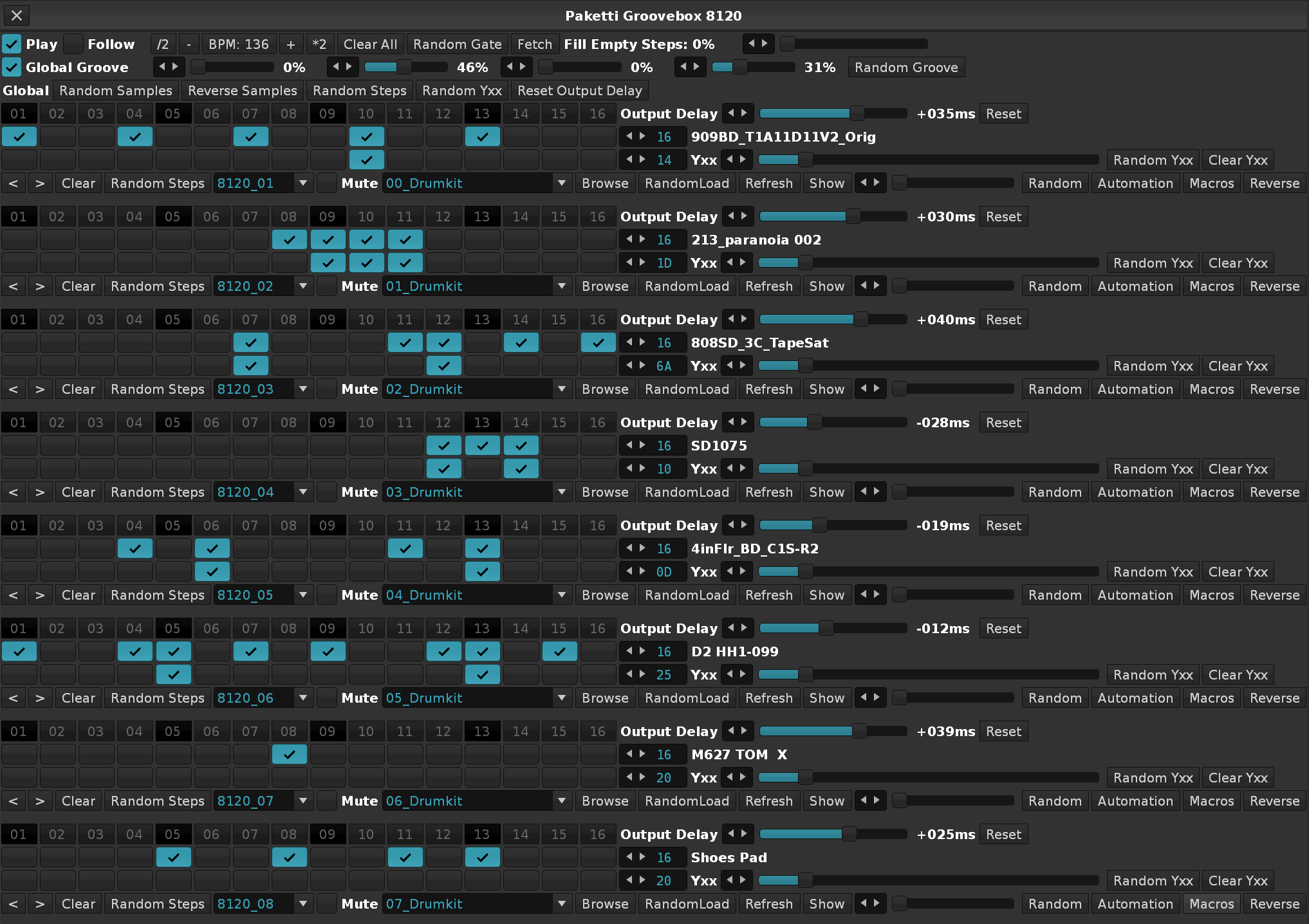

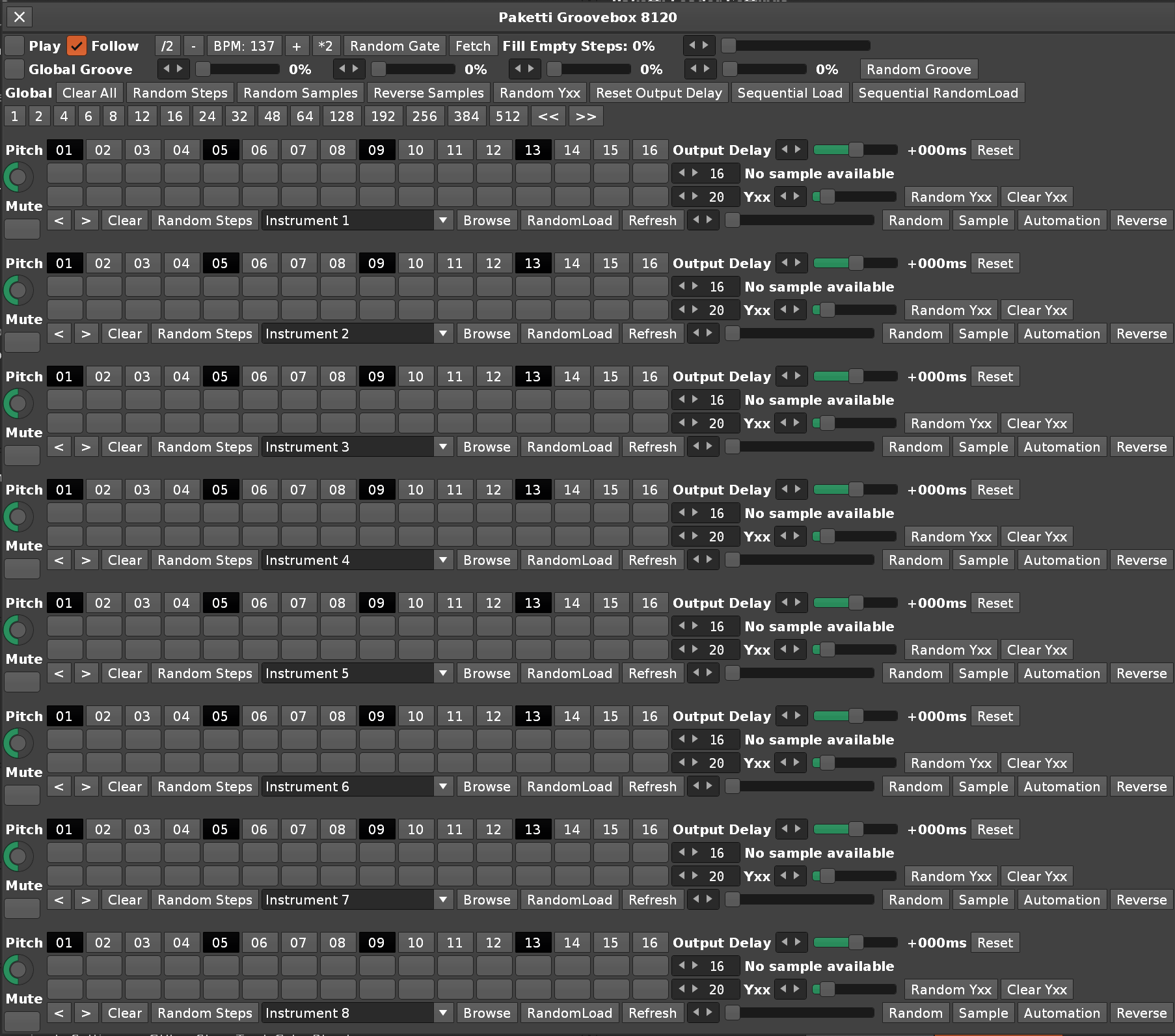

Paketti Groovebox 8120

There’s a 8 part 16 step stepsequencer which writes directly to the Pattern Editor. You can load 120 samples into each part, pick your preferred sound, and use checkboxes to make them play. Probability checkboxes to modify how likely the step per part is to play, can draw automation directly by clicking on Show Automation (leveraging the 8 macros introduced on every Sample Load) and use buttons to randomize step sequencer content, select a random sample for all parts, or selecting random samples for each part, reverse any of the part or all part samples.. and you can limit the steps from 16 to 1 at will. a brief demo at SO HEY TWITCH DELETES STREAMS SO ITS GONE // TODO I need to make a new one.

There’s dozens of impulsetracker/screamtracker3 shortcuts for pattern editing and modification, some of which have been recently supercharged to also allow for selecting automation, gif here meaning when you select something using paketti shortcuts, it will also select the automation, if automation is visible. this can be combined with the midiknobs for drawing automation curves easily.

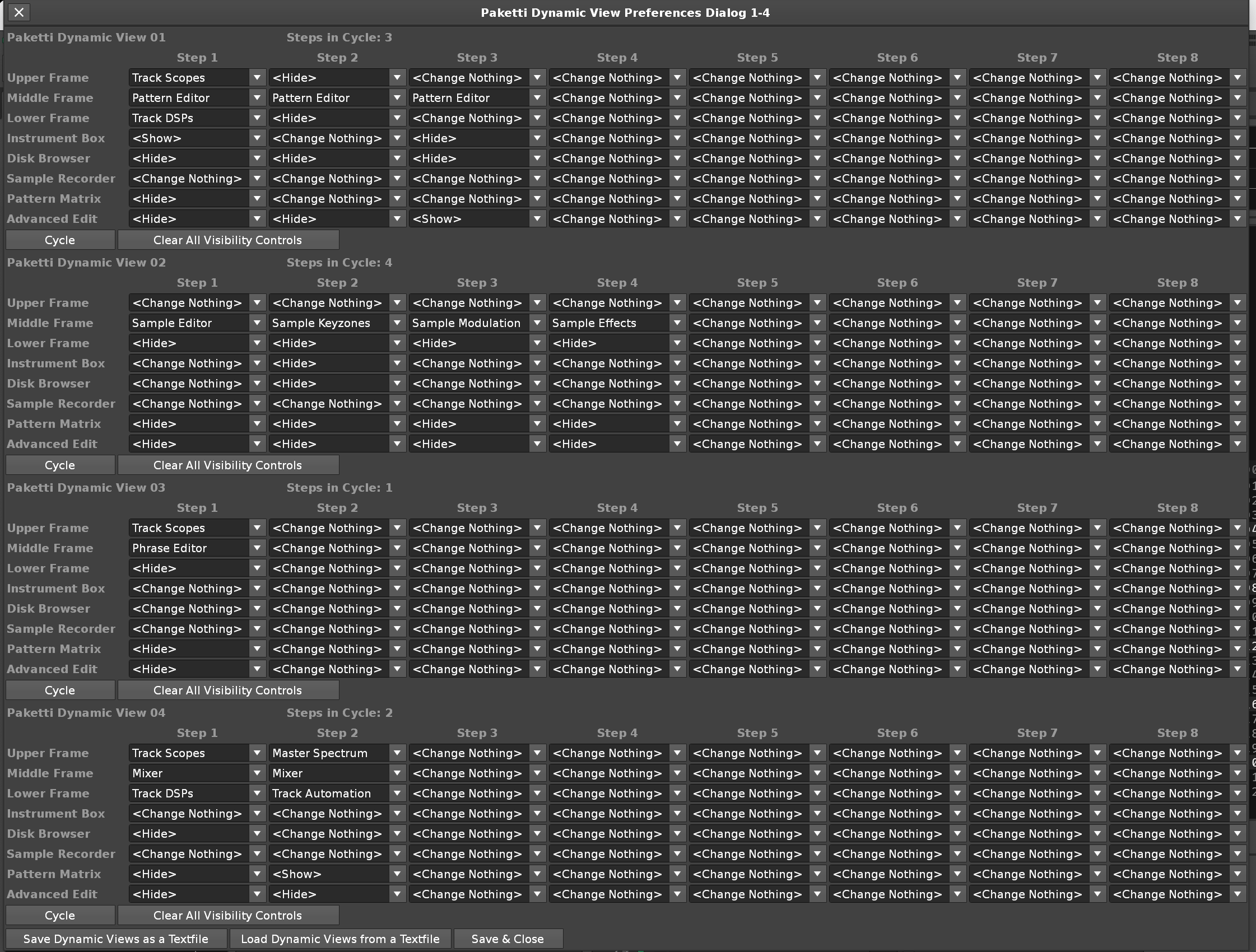

Dynamic Views for cycling through with shortcuts.

The Dynamic Views let you have a max of 8 shortcuts which cycle through the view settings that you have picked. each of the 8 shortcuts can have max 8 different cycles. so you have maximum control over “view presets” but they’re much more powerful than the 8 that renoise allows you to have, because they remember their state. You could, for instance, cycle, with one shortcut, from Pattern Editor to Sample Editor + show Sample Recorder, then press the same shortcut to hit Mixer, show Disk Browser + Pattern Matrix + Instrument Box, then again to only show Pattern Editor and Automation.

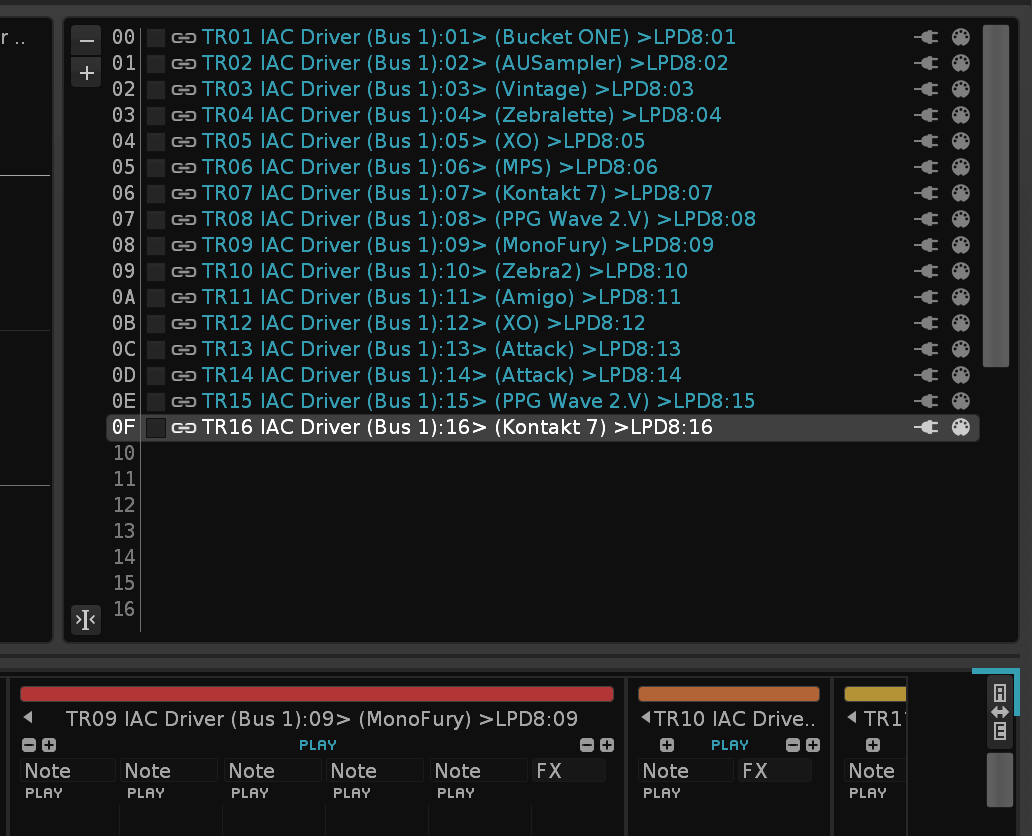

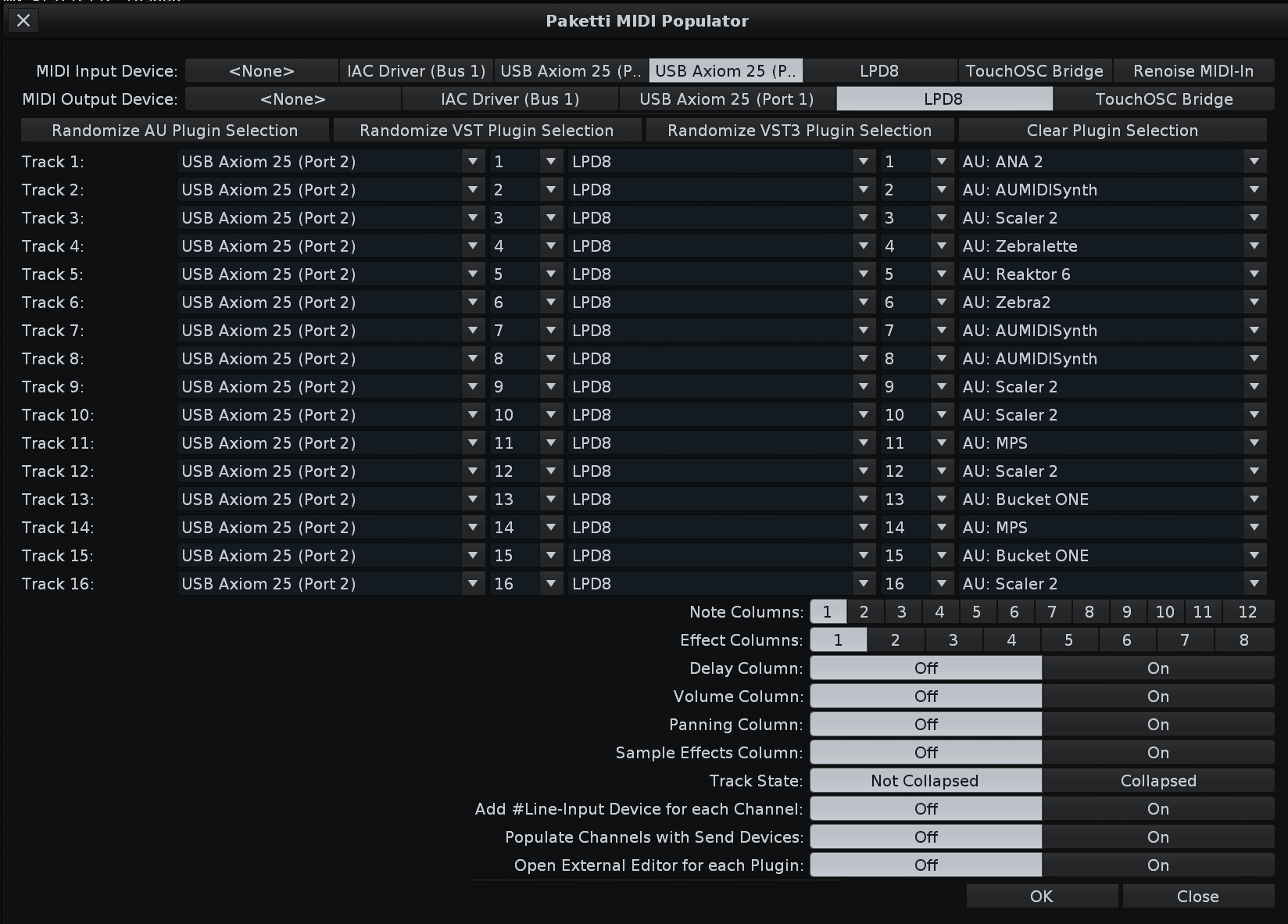

MIDI Populator

there’s a method of creating 16 new tracks with 16 midi input channels and 16 midi output channels and 16 plugin devices, automatic send generation and line input generation, for those who want to use renoise with an external sequencer with a multi-out soundcard, or those who want to use renoise as a sequencer for external synthesizers and want to map the midioutput channels themselves. all of the generated samples will have midi control devices set up directly, and automation ready to go.

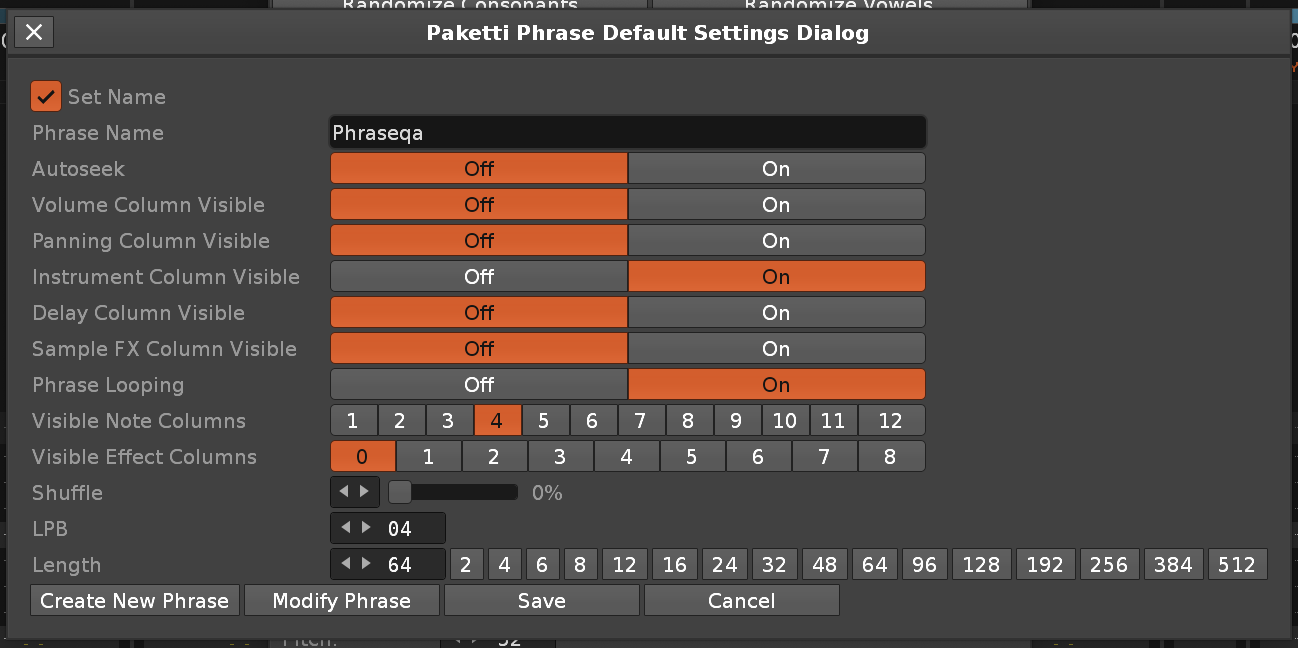

Default Phrase Settings

This allows you to set your Phrase Preferences - i.e., when you use the Paketti -specific shortcut for creating or modifying current Phrase, the settings will be added.

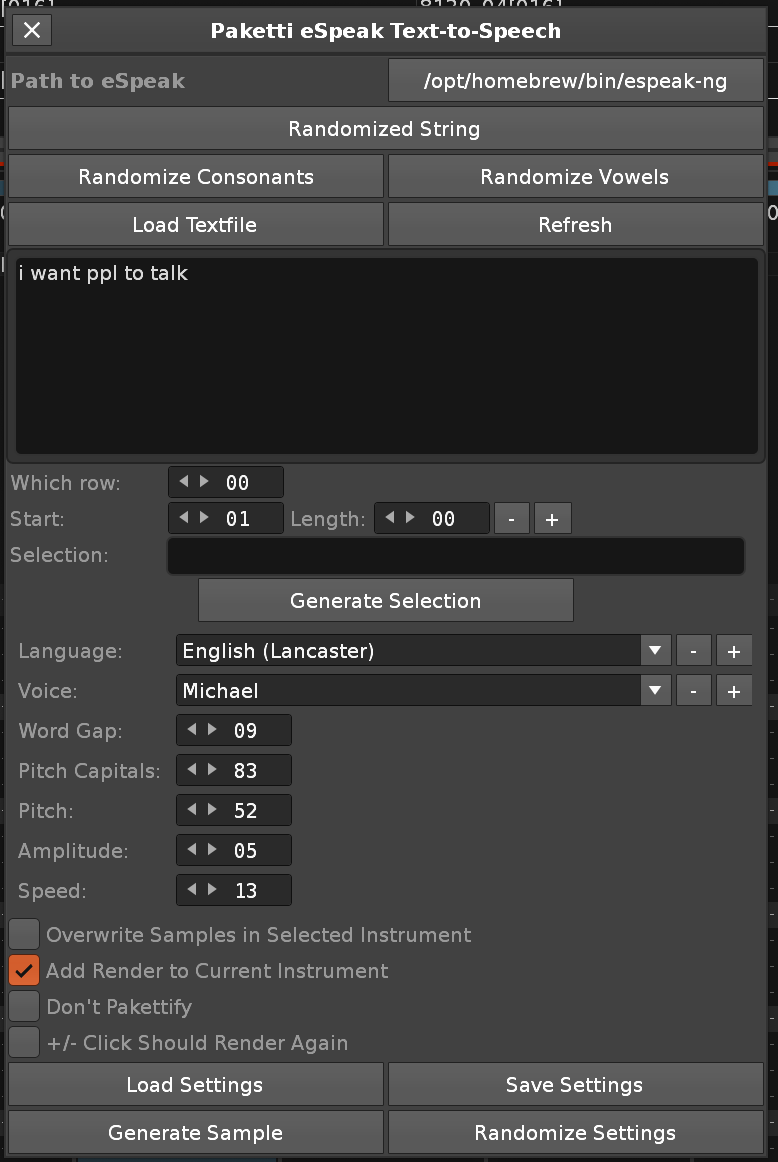

eSpeak Text-to-Speech speechsynthesizer

This uses espeak-ng for creating spoken word samples using text-to-speech synthesis.

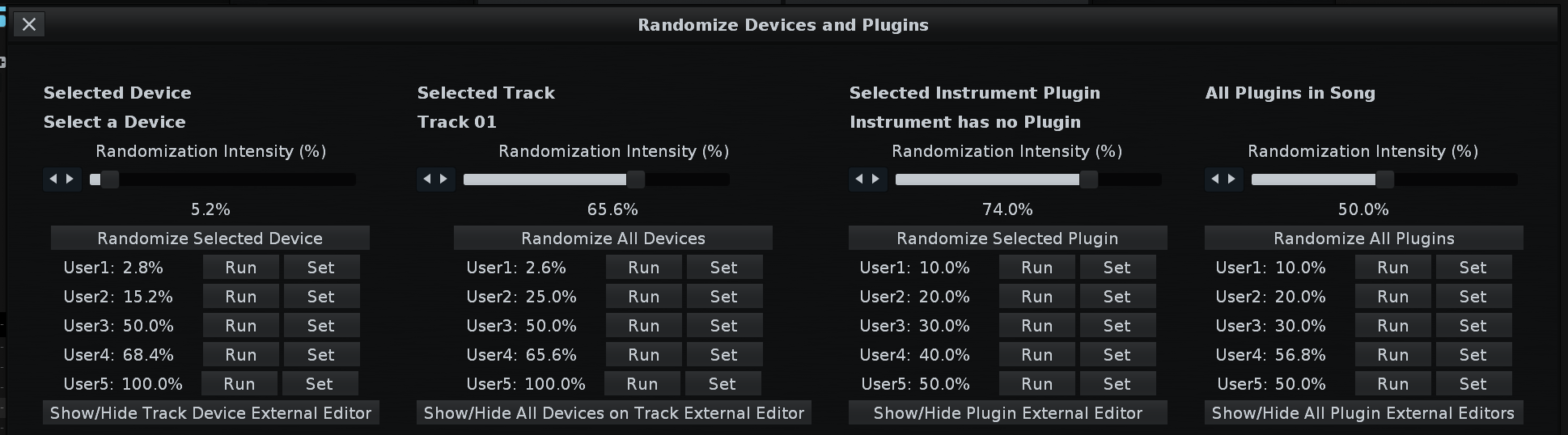

there’s randomizers for parameters of selected device, a mono-device which can be added or toggled on/off from the channel for quickly monoing

the same shortcut + midimapping loader for devices, is also available for plugins, so vst,vst3,audiounit,ladspa,dssi softsynths can be shot to the instrument box with shortcuts + midimappings

there’s an inverter device which inverts the audio - using the Gainer device. This can be added to both the Sample FX Chain and the Track DSP Chains.

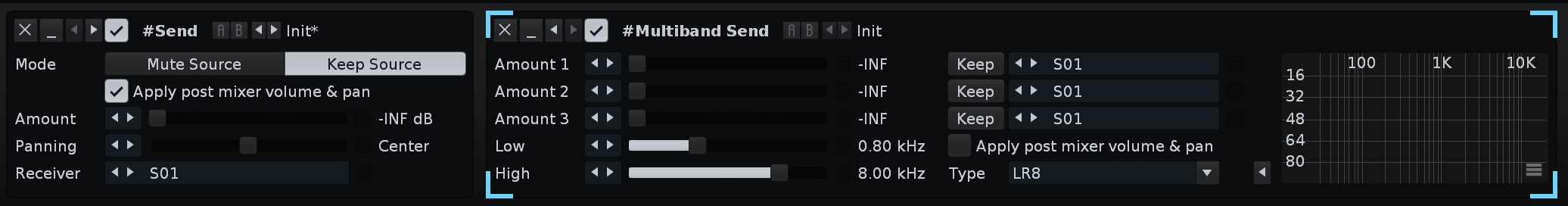

The send and multiband send shortcuts load the native devices “correctly” aka “Keep Source and volume at zero” as opposed to “mute source and volume at max”..

0G01 Loader

This uses the G01 (Glide to note) trick to allow for playing really long samples, even if the pattern would be shorter than the length of the sample. The sample will play until the end, and then replay again at the start of the next replay. This means you can have a 4 second drumloop but play 20 minutes of pads on top of it.

there’s a midimapping + shortcut that 1) shows sample recorder 2) starts recording 3) press the shortcut again, it stops the recording, throws in the 8 macros so you can quickly start recording anything by just pressing the shortcut or holding down a midi button, let go of the midibutton, sampling stops

there’s a pattern cheatsheet which lets you input pattern commands to either selected row or selection in pattern:

there’s shortcuts + midimappings for inputting volume, panning, delay, samplefx effect commands and effect parameters to the selection in pattern

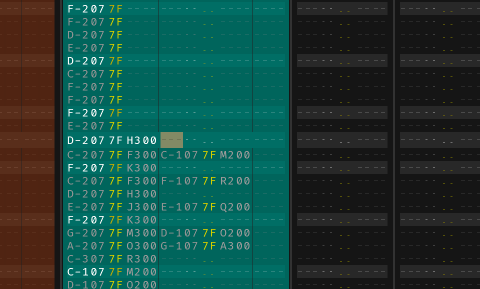

there’s “flood fill by editstep” shortcuts which let you take what’s under your cursor and repeat it every 6th row or 8th row etc, or every row.

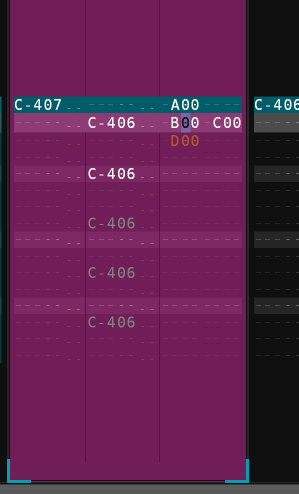

there’s a replicate at cursor shortcut, which enables this kind of stuff:

https://www.loom.com/share/a437d74618934e9db634ceb41b1c5b9a?sid=ead6a274-1a6a-4ea1-a068-344fed4aef23

there’s a “Set Repeater Value” Knob midimapping which will either 1) add repeater and activate it 2)detect repeater exists and modify the parameters, allowing for stuff like this:

https://www.loom.com/share/f4f94d05045a4df49896d52202d3adf7?sid=9c7c6c79-005d-48f4-ba21-ac06475b5bfc

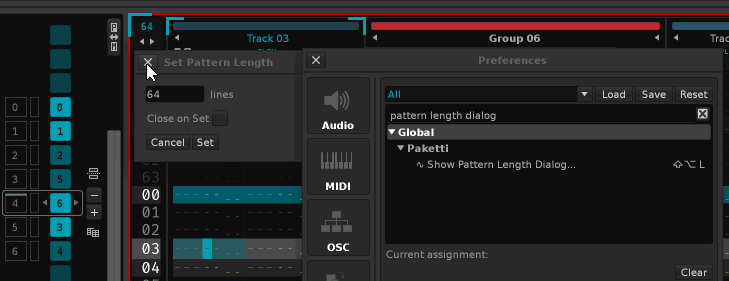

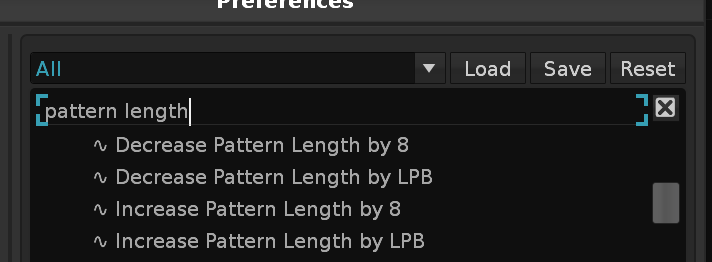

there’s shortcuts for changing pattern length to 4, 8, 16, 24, 32, 48, 64, 96, 128, 256, 512 - methods for duplicating content with 1-256 row patterns to double it, then LPB*2 diskwriting aka rendering a new sample, but making a clone of the pattern and setting it’s LPB to current LPB, then the clone of the pattern has LPB times two, and the audio playing there. there’s seamless rendering, aka if you have anything below 257 rows of pattern, it will duplicate it, render it, select the beginning 256 rows (so you can delete them if you like) and add a loop to the other 256 rows so you can have a reliably looping (mostly) long pad with tail mixed in.. mono to stereo converters for sample data (mono to left, right blank, mono to right, left blank, mono to stereo with both).. there’s a yt-dlp downloader that downloads the full audio from a youtube video, instagram, facebook, twitter posts, and it already has the macros loaded in.. and there’s multiple missing shortcuts for sample pitch finetune panning loop etc controls, same for midi.. i could go on. i’ve done max 4 hour demos of going through all the features, normally around 45minutes to 1,5hours depending on what i remember to show

there’s “Duplicate Instrument and Reverse” - which both makes a copy of the currently selected instrument, and then reverses the sample, and selects the sample. Duplicate Track and Instrument - will take the notes that are there in the current track. + track dsps, and make a new track, select the track, and duplicate the instrument. and if you have a plugin open in the original instrument, and duplicate the instrument with this script, then it closes the plugin external editor, and duplicates the instrument, jumps to the newly created track, and opens the plugin’s external editor for it. there’s a dialog that lets you randomize a selected device, or all devices in a selected track, or selected plugin, or all selected plugins, – there’s 5 different flavors of all four of those, with percentages you can set for them. there’s a “duplicate track with selected instrument”, meaning you can keep copying the note content, but it’ll be branded with your current instrument, instead of it being a duplicated instrument.

the randomize with percentage was from ModPlugTracker. there’s also a bunch of features from PlayerPro, such as this note inputting dialog, which lets you input notes, with editstep, to selection, or current row, meaning you can do stuff like this. there’s also a method of hovering the mouse to write effect columns to the selection in pattern.. i’ve also replicated the OctaMED Pick/Put Note technique, which lets you pick any note column + effect column content, and put it down. think of it like macros for note column + effect column content. you can do them with shortcuts (both picking up and putting down) but also with midi. so you could for instance have chords grabbed and keep slamming them down - there’s also controls for printing the information with a specific instrument.

one thing i keep forgetting is the Launch App Selection. you can define 6 apps, and when you run the shortcut, or menu entry, or click on “Send selected sample” in the dialog, it saves a temporary file and loads it in the app. such as audacity, apple music, ableton live (straight to session view). there’s also a backup folder (3 places) where it saves to one of the three places depending on the shortcut

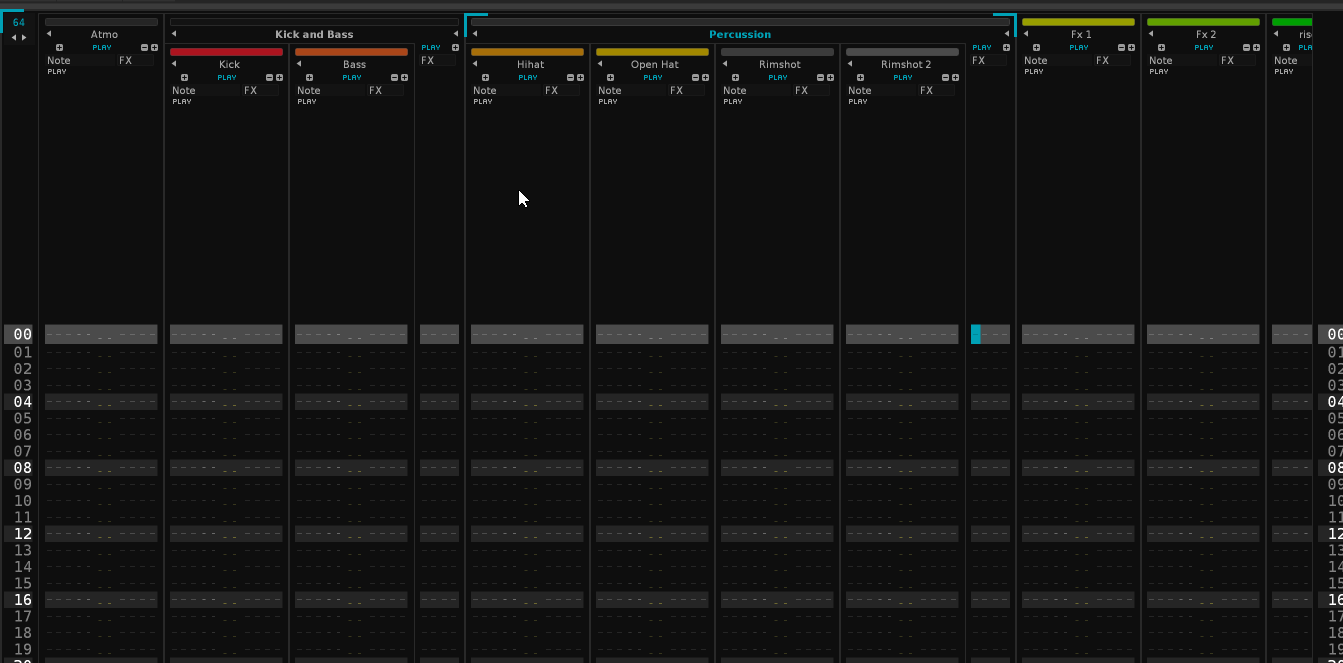

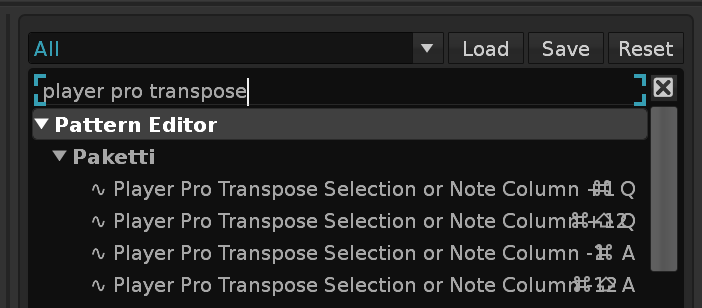

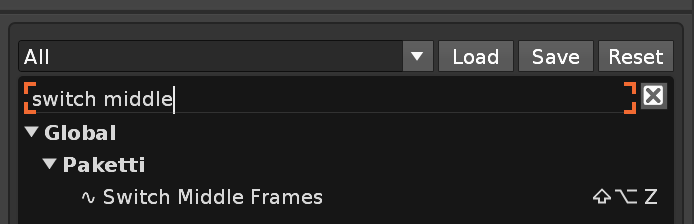

I’ve also built two dialogs for showing keybindings - with fuzzy search. one shows Paketti shortcuts only, the other shows all Renoise KeyBindings but can be filtered with tools or without tools, etc.

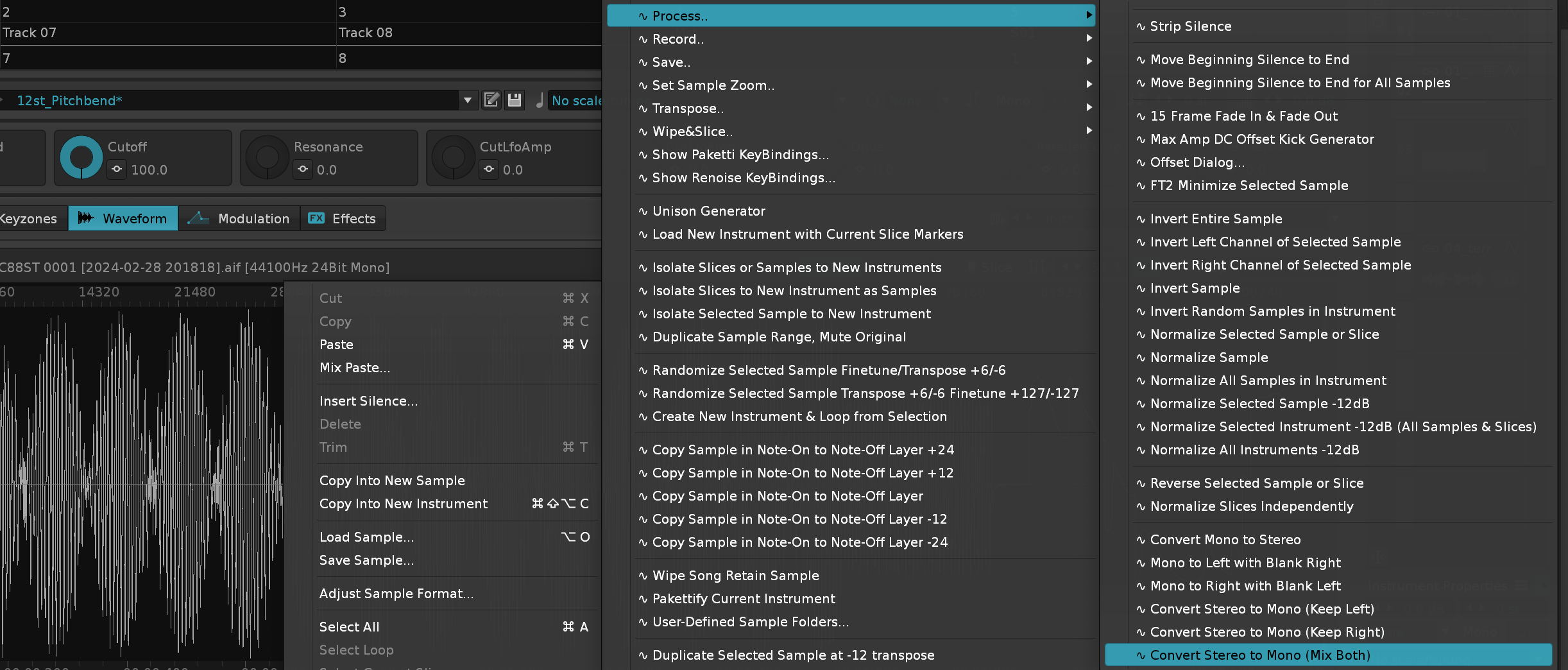

then there’s tiny audio tools such as “strip silence”, “move beginning silence to the end”.. shortcuts for invert left channel, invert right channel (or invert both channels). audio rotators, so moving the beginning to the left until it crosses over to the end, i.e. “nudge audio left / right”, then there’s rotation for moving the audio waveform up and down for extreme dcoffset and clippy distortion. then there’s a DC Offset kick generator, “Selection in pattern to group” (turn selected tracks into one group), midimappings for toggling effects on and off. midimappings + shortcuts for displaying the external editor on Master or selected track, of a specific track. i.e. if you use renoise for mastering and always have certain types of effects on master, you can show/hide that specifically named effect, no matter where it is in the effect chain. and if it’s not in the track dsp chain, then it will be loaded and added in. uncollapse/collapse all tracks for clearing up visual clutter Convolver IR export and IR import - when you export the selected IR, it opens up in the sample editor, so you can modify it, then import it back in. Switch Plugin Auto-Suspend On/Off “Save All Samples to Backup Folder 1…3” - all samples in the song will be saved to your preferred folder Unison Generator, takes a chipsound and makes 8 identical copies of it, shifts each of them left by 1/8 to 7/8 - modifies the volume, randomizes finetune, randomizes panning, and drops the overall volume (and includes the instrument macros in the copy) - for a nicer chipsound there’s hundreds of Section/Sequence/Selection shortcuts for queueing what plays next, or skipping to the next section or previous section or “what’s next in the queue” and wiping the queue there’s a global shortcut for Clone Current Sequence, Resize all non-empty patterns to 96 rows.. and Resize all non-empty patterns to rows Create Identical Track - takes the Note Columns / Effect Columns & Visible Columns&copies

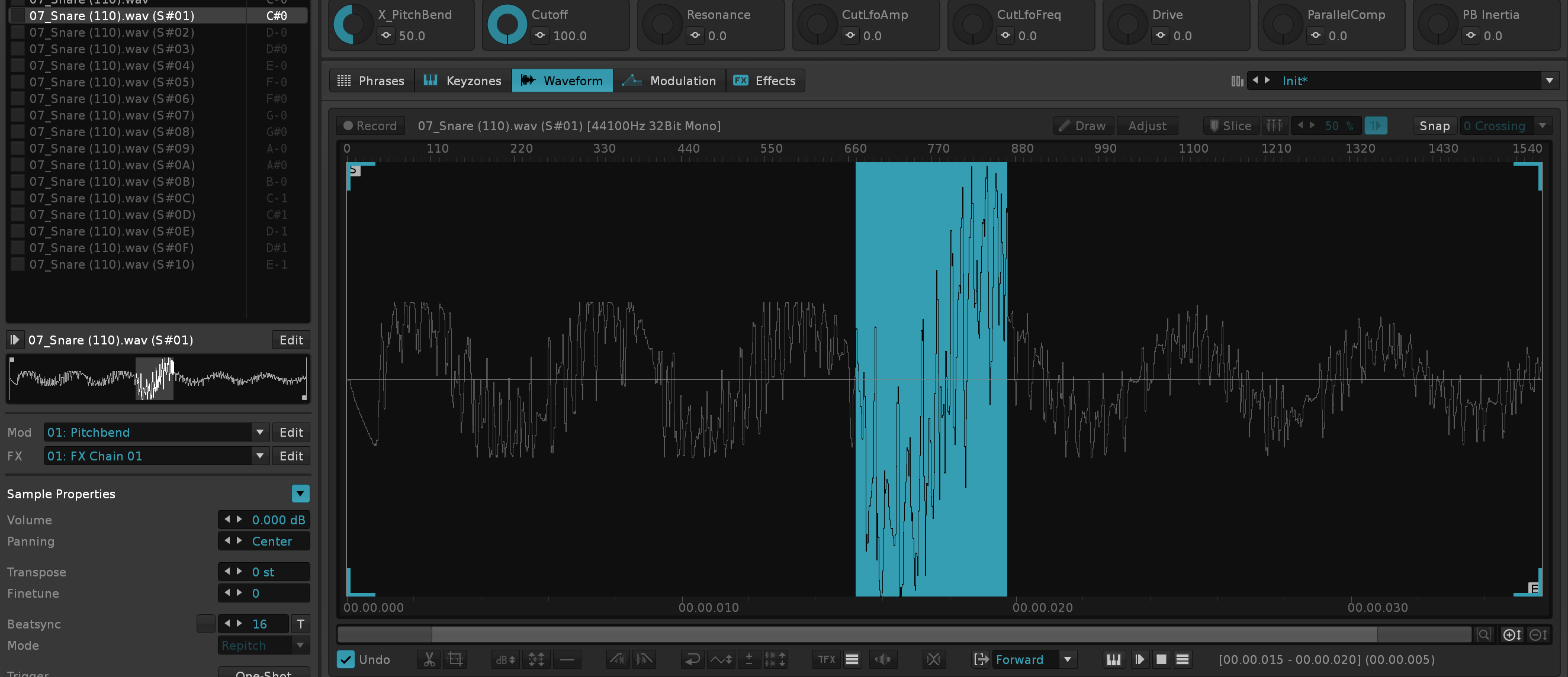

For a selection in sample editor, you can press a shortcut to “create new instrument & loop”. there’s “mute or solo selection in pattern”, expand/shrink selection content shortcuts, set selection to selected instrument.. bypass all effects in track, or enable.. show all parameters of all devices in track

Oblique Strategies Dialog / Loader - it will randomly pick one Oblique Strategy from a list on the status whenever you save or load a song or restart Renoise Paketti Midi Mappings - it shows some of the Paketti MidiMappings and if you have Midi Mapping “Learn” mode on, you can actually pick them yourself and assign them easily. for better discoverability Output Routings dialog that shows all the tracks and lets you set the Output Routings in case you have a multi-out soundcard Shortcuts for setting each track, or the Master, to a specific output routing channel (01-64) for those with multi-out soundcards Track Renamer - select a bunch of tracks with selection-in-pattern and rename them all in one go, one track at a time Phrase Doubler / Halver (takes the content of the Phrase and increases the size or decreases the size Set Phrase Length to 001-004-006-008-012-016-024-032-048-064-096-128-192-256-384-512 Set Phrase LPB 1-256 same for pattern LPB Print current BPM & LPB to Master track of Pattern - so can modify the tempo in another pattern -good for LPB*2 i.e. increasing resolution Keep Sequence Sorted True/False/Toggle 15 frame fade in fade out for reducing clicks Duplicate sample, maximize audio, turn to 16bit, save as wav or flac (in case you want to deliver them or post them somewhere) Flip Sample - this allows for 1/2 1/4 1/8 1/16 flipping/rotating of a sample, good for beats if you wanna flip it or any other type of sample select first half of sample buffer shortcut - and second half too. midimappings for select sample buffer start and end, so you can just use two knobs to select the length and modify set loop mode off, forward, pingpong, backwards copy note-on sample to note-off at transpose 0, +12, +24, -12, -24 meaning when you hit a note off on a bassnote, the same basenote can play an octave higher or lower - good for octave basses jump to first track in next group / jump to first track in previous group

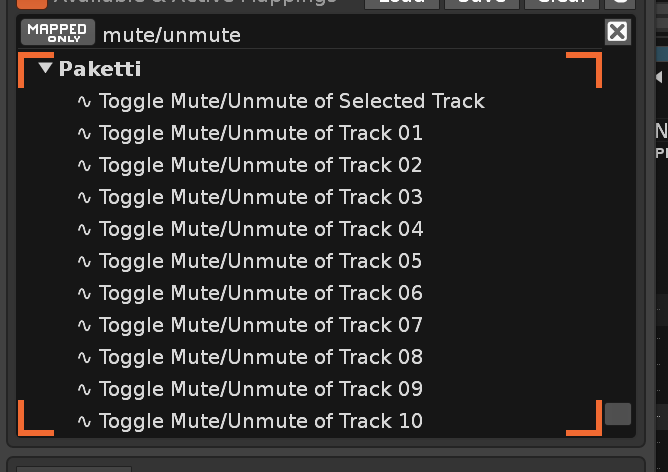

midimappings for select instrument, select track, keyboard octave, editstep 0-64 and 1-64, double editstep halve editstep, beatsync line control / double beatsync / halve beatsync 8 midimappings for controlling the macros of the current instrument. meaning, you use the 8 midimappings on any track and you can control macro knobs without having to assign them to a specific instrument. i.e. they’re “free” / “dynamic” for lack of a better word Interval generator. shortcuts for adding +1 to +12 to the current note - adds a new note column, moves to it and adds a note that is +x or -x higher/lower than the original basenote. also midimappings for selecting multiple chord intervals good for experimenting with basenotes and writing intervals in and seeing what happens. couple that with the Paketti Gater and you can go wherever you please really. Wipe Effects from selection in pattern shortcuts for showing a specific number of note columns, or effect columns expose / hide note columns or effect columns - this replaces the Renoise “add new note column” by actually exposing it AND selecting it. much more intuitive direct shortcuts for writing Axx to Zxx effects and their content (+1 -1 +10 -10) to selection or row match delay column to current row (or panning, or volume).. means you have a row you’ve selected, run the shortcut, every row in the pattern gets the same delay, or panning, or volume setting Note Interpolation (entering notes from beginning to end of selection so c-1 at 00 and c-5 at 64? every step has an interpolated value based on math randomize delay, panning and volume value for selected tracks and their columns flood fill with selection - takes your selection and fills the pattern with it in a loop shortcuts for setting visible columns (vol,pan,delay,samplefx) for all tracks globally clear/delete track dsp effects from current track bpm increase +0.1 -0.1 +0.5 -0.5 +1 -1 +5 -5 bypass all devices on all tracks bypass all devices on selected track

set master output volume in dB to -INF or 0 or -0.1 +0.1 -1 +1 for better control midi mappings for setting global groove control 1,2,3,4 multi-combos like “shortcut for toggling play, record, follow pattern, metronome on/off” or “toggle play,record,followpattern on/off, or record+followpattern on/off hide open track dsp device + sample fx device external editors shortcuts + menu entries for adding sample modulation devices (all available for volume, pan, cutoff, resonance, overdrive, pitch) shortcut for adding and opening formula device direct shortcut for exposing the pitchstep device external editor, which is included in all Paketti-loaded samples so you can immediately start pitching it up and around for extra randomness visual editmode for highlighting which track is selected, for those with aged eyes and who have grown tired of trying to figure out which track they’ve selected volume, panning, delay dialog with 16 sliders - basically another step control for setting specific settings, again 16 steps but can be reduced to 1-16 steps for each, so they can be offset shortcuts for starting playback at a specific row (000-512).. shortcuts for starting playback at a random line of the pattern, or random 2nd or 4th or 8th row (in order to be able to step across it in a stair/stepped way play current line and step forwards, play current line and step backwards, for those who want to use renoise as a.. musical box? @tkna how would you describe this with words? shortcuts for selecting a specific track i.e. 1-32, you set the shortcut and it jumps you there sample fx group + mod group shortcuts for modifying them, same with mute groups show/hide selected track’s device 1 to 64, another external editor shower/hider a mode to enter where if you’re in effect column, it’ll jump you to the next row in that track that has a note. so you can enter effects to where the notes are

okay.. just realized i completely neglected to talk about the “Paketti Automation” setup.

This brings Master track automation of Global Groove, LPB (1-32), BPM (20-300), EditStep, Octave, EditMode, Recorder, Pattern Length, Instrument Pitch, Instrument LoopStart, Instrument LoopEnd, and 3 other things that remain to be figured out and configured.

this means you can actually automate when the recording is on or off, when sample is being recorded (!), what the selected instrument pitch ir or selected instrument loopstart+loopend, and there’s 3 more additional things that could be automated, if i could just figure out what they are. any ideas?

the reason why there’s LPB + BPM control is that the BPM in Renoise Master track automation is 20-999 (!) and LPB is 1-256, so just a bit too much, i asked around a lot and 20-300 and 1-32 seemed to be the agreed upon, anything more, just let me know (64?). but to maintain automation resolution and “keeping it making sense”, for most uses, these artifiical limitations are alright

i think the reason why i forgot to mention this was that i have had a tough time finding anyone to tell me what else could be done. i did experiments of using automation to change lower frame, middle frame, upper frame views, for instance. basically any script can be run like this. but i couldn’t get anyone to talk to me about what they wanted and gave up and forgot about it

Old About

Paketti is a multipurpose Renoise tool. Working like an expansion pack, it delivers hundreds of new functionalities to the app, ranging from Quality-of-Life (QoL) improvements to new advanced features inspired by Impulse Tracker, Schism Tracker, ModPlugTracker, Player Pro, John Player/Quantum SoundTracker/PollyTracker, OctaMED and many others. It also addresses multiple community requests from the Renoise Forum that were not yet considered by the developers.

It is far too complex to sum up in just a few words. However, some notable changes include:

• Over three thousand new keybinds covering multiple areas of Renoise;
• Default XRNI functionality - each loaded instrument or drumkit has Pitchbend, Glide Amount, Cutoff, Resonance, Cutoff LFO Amount, Cutoff LFO Frequency, Overdrive, Parallel Compression.
• Automatically load multiple samples into sequential instrument slots;
• Device parameter randomizer;
• Plugin parameter randomizer;
• Change default computer keyboard Velocity with Midi Mapping;
• Change Global Grooves with Midi Mapping;
• Freeze & Flatten Track -> Creates a new Track with content playing. Also Records incoming audio if #Line-in Device is in the Selected Track;
• Quick switch autosuspend for Selected Plugin;
• Bypass all devices in Selected Track;
• Floating window to insert plugins or Devices and add them as keybinds and MidiMappings;
• Floating interactable FX column cheat sheet, including sliders to quickly write changes to row or selection in pattern in your pattern;
• Pattern doubler/halver (duplicates the Pattern content, and the automation);
• Color/highlight the selected track in Pattern Editor (with EditMode (Record On/Off);
• Dozens of shortcuts for Pattern AND Phrase editing;
• Impulse Tracker (.it) key commands (ALT-D *2, ALT-L *2, ALT-U, ALT-F, ALT-G, ALT-Y, Home *2, End *2, F2 F3 F4 F5 F6 F8 F12);
• Quickly add Automation curves to pattern automation (fade ins/fade outs (linear or exponential), pitchbend/panning);
• Show/Hide Device parameters as sliders in the Mixer;
• Control Selected Sample loop start/endpoints with MIDI;
• Control Automation start / endSelection via MidiMappings
• Control Sample Buffer start / endSelection via MidiMappings
• And much much more!

Credits

The original Paketti Manual projects was started by @untilde, thanks a lot for that. He donated it to me, @esaruoho - and I started tweaking it a bit.

Paketti is a project by Esa Ruoho, a.k.a Lackluster (@esaruoho). More information here. This documentation was originally started by @un

Index

For better comprehension, this manual is divided into sections. Each chapter corresponds to a different Renoise screen/tab and can be accessed from the list below:

Global

1 - ‘Tools’ Menu

Settings for Paketti can be found under Main Menu -> Tools -> Paketti... This menu also includes some shortcuts for useful features:

Item	Description	Index
Preferences	Shows Paketti Preferences window.	1.1
Instruments	Contains sample and drumkit loaders, plus shortcuts for beatsync and pitchbend.	1.2
Pattern Editor	Random BPM, FX Cheat Sheet, Collapse/Uncollapse All, Double/Halve Pattern	1.3
Plugin/Devices	Multiple Plugin/Device functionalities.	1.4
Show New Song Dialog	Allows you to start a new song with the option to keep the same Patterns/Instruments/etc	-
∿ Squigly Sinewave to Clipboard	Copy this symbol to easily find Paketti in the Keys window (under Renoise Preferences).	-
Paketti MIDI Populator	Automatically fills current Project with Tracks, Instruments, Sends and Macros for External MIDI Controllers.	1.5
Clean Render Selected Track or Group	Automatically bypasses FX in Track/Group before resampling.	-
Catch Octave	(NEEDS EXPLAINING)	-

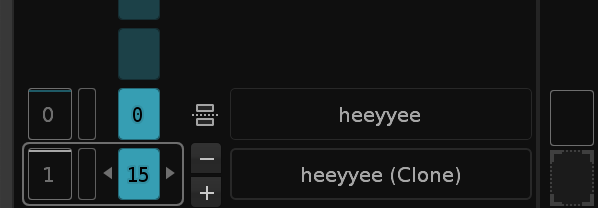

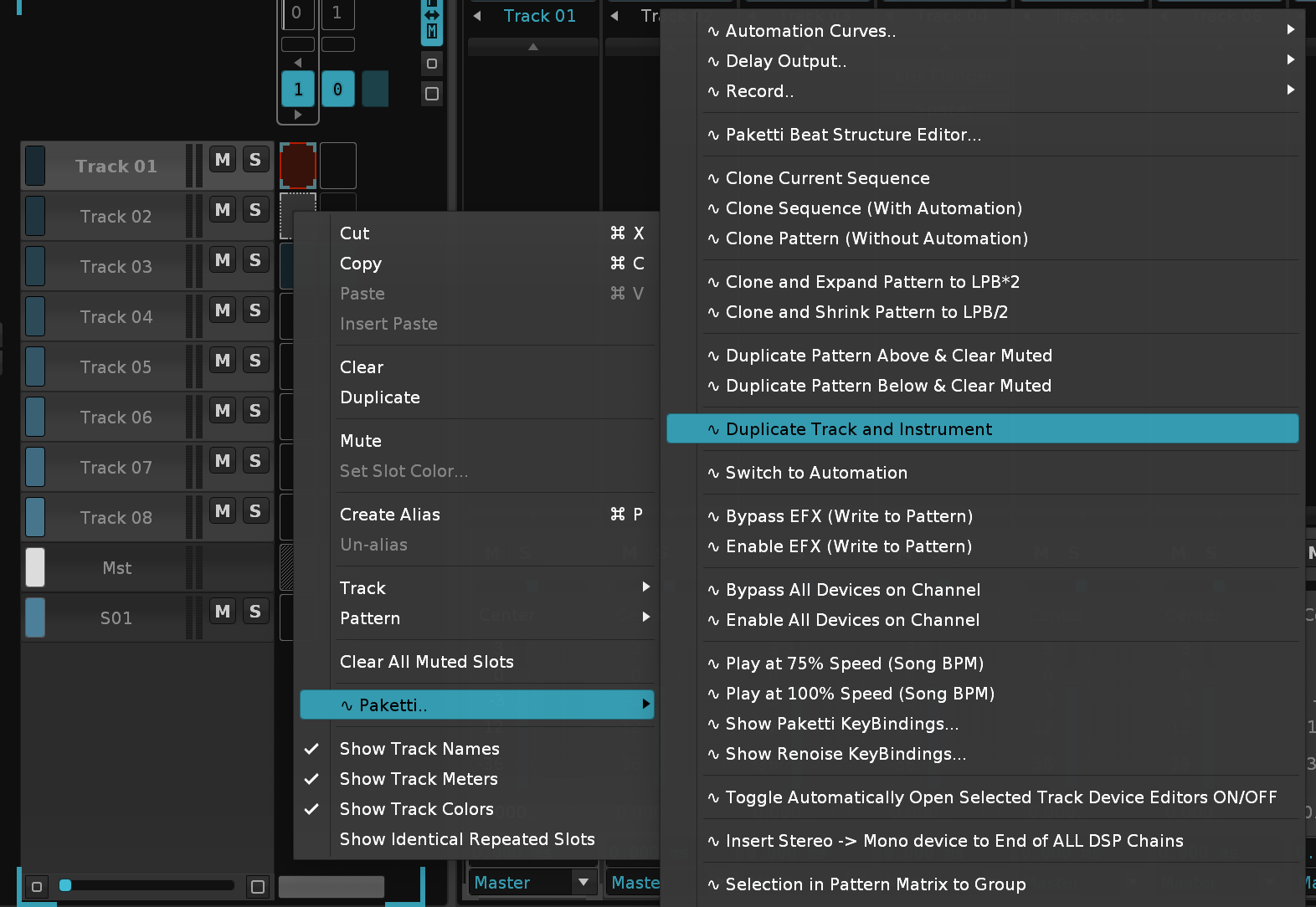

Clone Current Sequence	Self-explanatory.	-

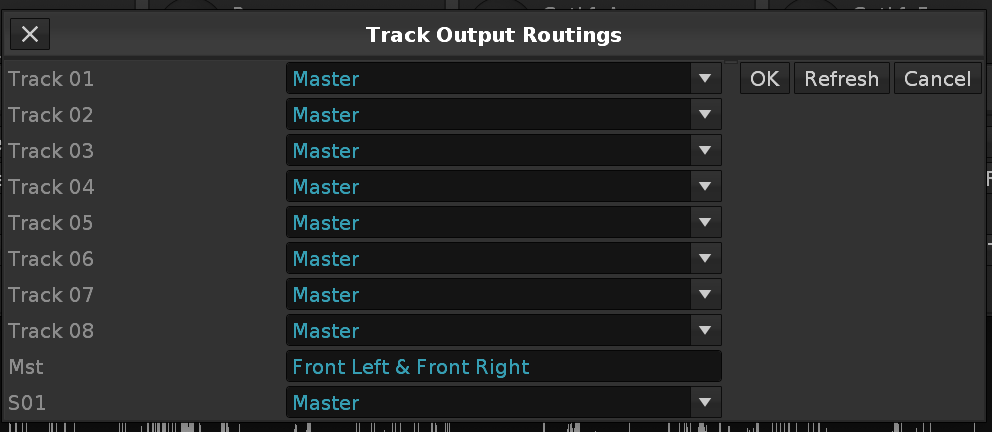

Track Routings Dialog	Displays a pop-up window containing all track audio device routings.	-

1.1 - Preferences

Item	Description	Notes
Upper Frame	Enables/Disables upper frame control when using Impulse Tracker key commands.	See [insert IT topic - to be written].
0G01 Loader	Automatically enables the 0G01 hack for samples inserted using the Paketti loaders.	See 2 - Instrument Box to better understand the 0G01 hack.
Random BPM	(NEEDS EDITING)	-
Pale Green Theme	Loads Paketti color theme for Renoise.	-
Gifts: Plaid Zap Load	Insert a special XRNI instrument made from Plaid samples.	See forum post.
Create New Instrument & Loop from Selection	Quite Self-Explanatory. Works on the Sample Editor (right-click).	-
Paketti Loader Settings	Changes default settings for Paketti Drumkit/Multisample loaders.	See 1.2 for more details.
Wipe & Slices Settings	Determines default settings for slices generated via Paketti (under the Sampler window and Instrument Box): Slice Loop Mode, Beatsync, Autoseek, etc.	See 2 - Instrument Box.
Render Settings	Determines sample rate and bit depth for Paketti resampling procedures.	-
Edit Mode Colouring	Highlights the track you’re currently editing, all tracks or none.	-

1.2 - Instruments

Item	Description	Notes
PitchBend Drumkit Sample Loader	Automatically generates a drumkit from selected samples. Includes some macros. Samples are adjusted according the your Paketti Loader Settings (see 1.1 above).
PitchBend Multiple Sample Loader	Automatically generates one instrument for each selected sample. Sample are also adjusted according to Loader Settings.
Start Sampling (Record)	Pops up the Renoise Sampler Recorder and starts playback. Objective for usage is to set “Pattern” mode, and record multi-pattern length content.
Beat Sync Lines Halve/Double	Adjusts the Beatsync time for all slices in the Selected Instrument. Does not affect the first/main sample.
Xst PitchBend Instrument Init	Inserts an empty instrument containing several useful macros: PitchBend, Cutoff, Resonance, Cutoff LFOAmp, Cutoff LFOFreq, Overdrive, Parallel Compression and PitchBend Glide Inertia.

1.3 - Pattern Editor

Item	Description	Notes
Random BPM	Picks a random BPM value for the project.
Write Current BPM&LPB to Master column	This writes both the current BPM and the LPB to the Master Track. Useful when you change LPB / BPM across the song patterns.
Effect Column CheatSheet Dialog	A pop-up window containg all pattern commands available in Renoise.	See 1.3.1.
Collapse/Uncollapse All Tracks	Collapses (minimizes) or Uncollapses (maximizes) all the Tracks, Groups, Master and Sends.
Pattern Doubler	Doubles the current pattern size while also duplicating its contents accordingly (notes, volume, panning, delay, samplefx columns and effect columns, and automation.
Pattern Halver	Sets the pattern to 1/2 current size. Works differently from the native keybind CTRL+F8, as it does not adapt pattern content to fit the new length. Simply put: pattern length is changed to half, but notes/commands remain in place.

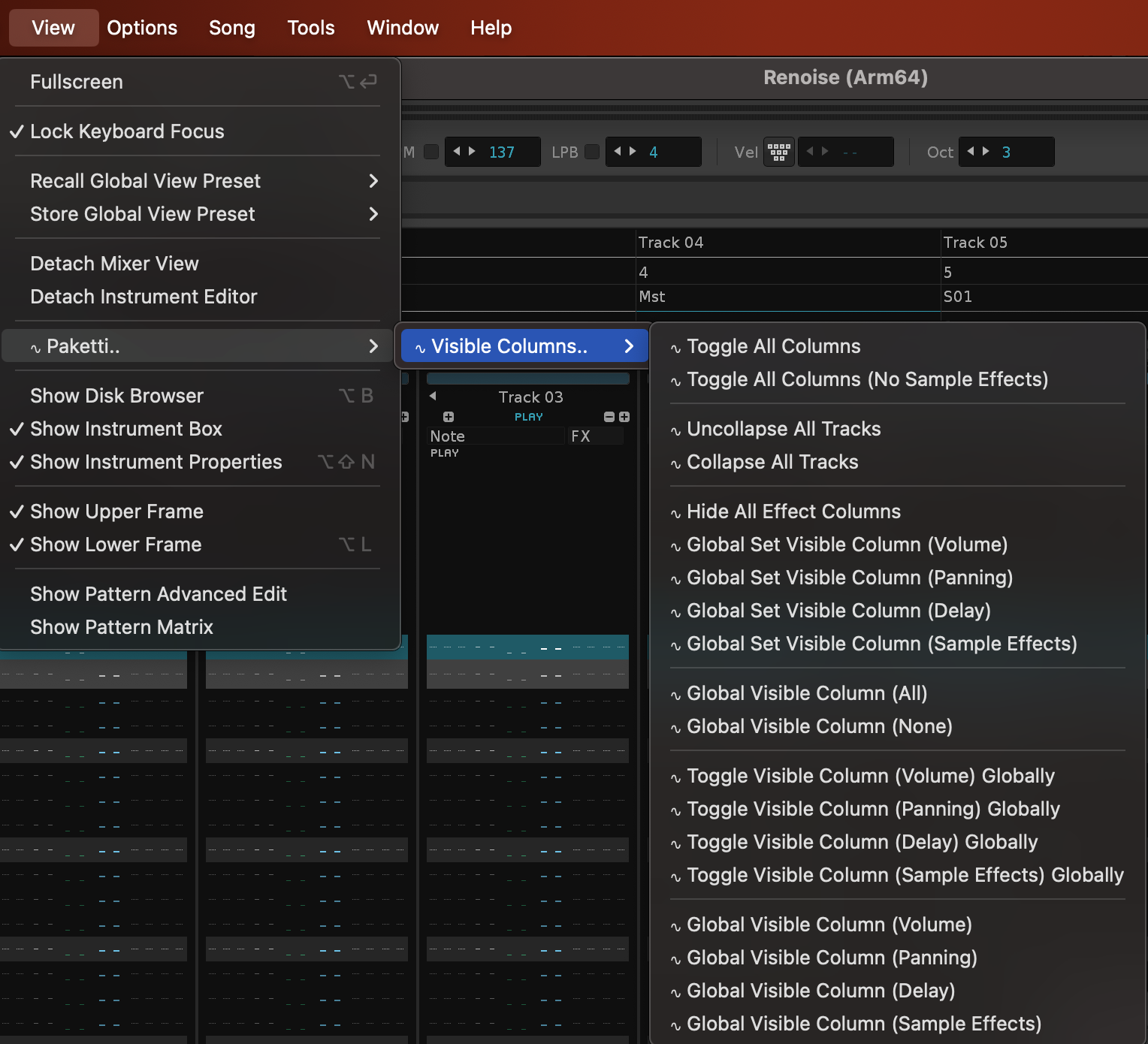

Global Visible Column (All)	Expands all columns in all tracks: Volume, Pan, Delay and SampleFX.

1.3.1 - Effect Column CheatSheet Dialog

Please note: the Effect Column CheatSheet also features sliders for the Volume, Pan, Delay, SampleFX and Effect Columns. Moving a slider places the correspondent value in the highlighted row or selection in pattern. It is very effective for manually programming intricate modulations: pick an effect, move the slider, move to next line, and so on. It’s also the perfect companion for Renoise newcomers who still haven’t learned the most important commands.

1.4 - Plugins/Devices

Item	Description	Notes
Debug	Different plugin related utilities for debugging. Can be ignored by the average user.
Switch Plugin AutoSuspend OFF	Quickly Enables/Disables the AutoSuspend function in Renoise. From the user manual: “Auto Suspend: When enabled, Renoise will completely shut off the plugin when it is no longer producing sound. This is mainly done to reduce CPU usage.”
Expose/Hide Selected Device Parameters in Mixer	Display plugin parameters in the mixer as sliders. It’s the default behavior for some native devices, such as the Compressor and Mixer EQ.	See 1.4.1.
Expose/Hide Selected Track ALL Device Parameters	Same as above, but applies to all devices in the selected track.	See 1.4.1.
Hide Track DSP Devices for All Tracks	If External Editors for any devices on Track DSP are visible, this will hide their External Editors.
Bypass/Enable All Devices on Track	Self-explanatory. Useful to check pre/post processing. In other words, how the FX chain is affecting signals in a particular track.
Load AU/VST/VST3 Plugins Dialog	A pop-up window to quickly load instrument plugins or add them as keyboard shortcuts. These plugin shortcuts can be found under the Keys tab in Renoise Preferences.	See 1.4.2.
Open Visible Pages to Fit Plugin Parameter Count	Fully expands a plugin/device window so all the parameter sliders are visible.

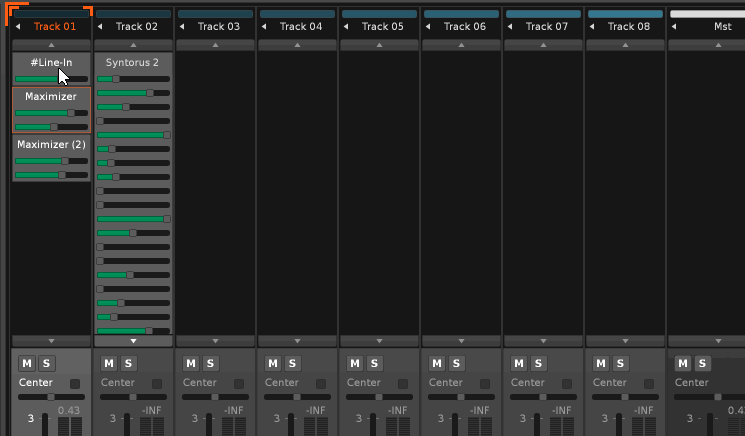

1.4.1 - Expose/Hide Selected Device Parameters in Mixer

1.4.2 - Load AU/VST/VST3 Plugins Dialog

1.5 - MIDI Populator

The Paketti MIDI Populator is a powerful tool to automate project configuration for external MIDI controllers and/or sequencers. It allows the user to pick MIDI inputs/outputs and quickly insert plugin instruments (up to 16), including an option to randomize the VSTi selection. A new track is generated for every selected instrument - and outputs set accordingly. These tracks can be configured for automatic Send devices and number of Volume/Pan/Delay/FX columns.

For users who do not have external hardware sequencers, a good use case for the MIDI Populator is to receive MIDI information from applications such as VCV Rack and Pure Data. However, a third party virtual MIDI server such as LoopBe1 may be necessary to connect these applications to Renoise. This way, you can build sequences in VCV Rack, for instance, and have audio output from VST plugins inside Renoise. Speaking of audio… a virtual audio cable (VAC) could also be used to simultaneously stream audio from VCV Rack (and other applications) to Renoise.

1.5.1 - MIDI Populator Quickstart

1. Select MIDI inputs and outputs.
2. Manually pick a plugin for each MIDI channel or use the Randomize VST3 Plugin Selection to randomly pick instruments.
3. Configure the remaining options, which range from number of note columns to automatic Send devices.

Paketti will then generate a new track for each plugin, with automatic MIDI In/Out configuration and Send population (if enabled), and also #Line-In Device placement for all tracks, in case the objective is to use audio inputs..

Instrument Box

By right-clicking the Instrument Box (by default, located on the right corner of the screen) another set of Paketti features is available:

Item	Description	Subtopic
Initialize...	Creates a new empty instrument which includes pre-configured macros for common modulations: PitchBend, Filter Cutoff, Amp Envelope, Drive, etc. If the 0G01 hack is enabled, a new track is created and the command placed in the first line of current pattern alongside the C-4 note. This will be further explained later in the current chapter, so bear with me.	2.1

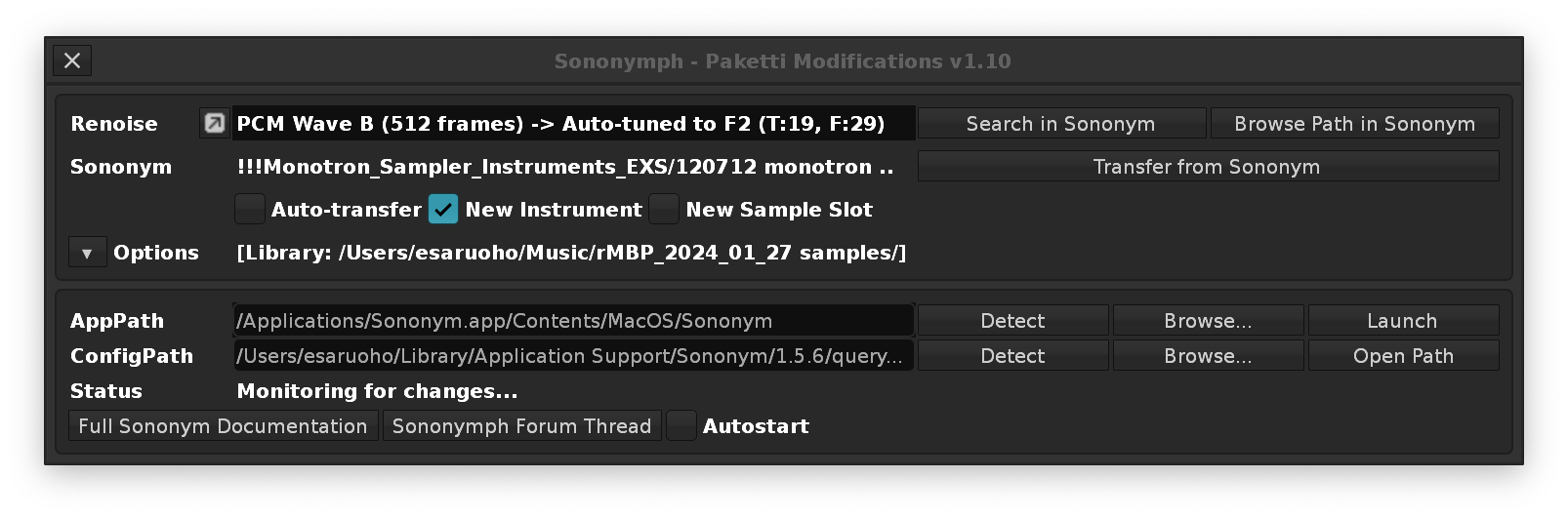

Launch App...	Sends the selected samples to desired applications. Can be used to bounce stems into another DAW or to export files into a sample manager, such as Sononym.	2.2
Smart Folders...
Wipe & Slice...	Clears all slice markers in the selected instrument. It can also replace the current slices with a new set of equally distributed slices (2/4/8/16/32/64/128). In vanilla Renoise the slices have to be manually removed in the Sampler window - so this option automates this process.
Duplicate and Select New Instrument	Self-explanatory.
Switch Plugin AutoSuspend Off	Quickly Enables/Disables the AutoSuspend function in Renoise. From the user manual: “Auto Suspend: When enabled, Renoise will completely shut off the plugin when it is no longer producing sound. This is mainly done to reduce CPU usage”. This option is also available in the Tools menu.
Create Phrase	Self-explanatory.
PitchBend Drumkit Sample Loader	Automatically generates a drumkit from selected samples. Includes some macros. Samples are adjusted according the your Paketti Loader Settings (see 1.1 above). This option is also available in the Tools menu.
PitchBend Multiple Sample Loader	Automatically generates one instrument for each selected sample. Sample are also adjusted according to Loader Settings. This option is also available in the Tools menu.
Save Selected Sample .WAV/.FLAC	Self-explanatory.
Wipe Song Retain Sample	Self-explanatory.
Clean Render Selected Track or Group	Works like the “Freeze and Flatten” option in some other DAWs. It renders the current (source) track into a new instrument and automatically places a C-4 on the first line of a new track. After that, the source track is automatically muted and collapsed. Useful to share your .xrns without fearing plugin dependencies, to free up CPU or maybe just to support your resampling needs.
Record to Current Track
Start Sampling (Record)

2.1 - The 0G01 Hack

UNDER CONSTRUCTION

2.2 - Launch App

Sampler

| Item | Description | Subtopic | | — | — | — |

Pattern Editor

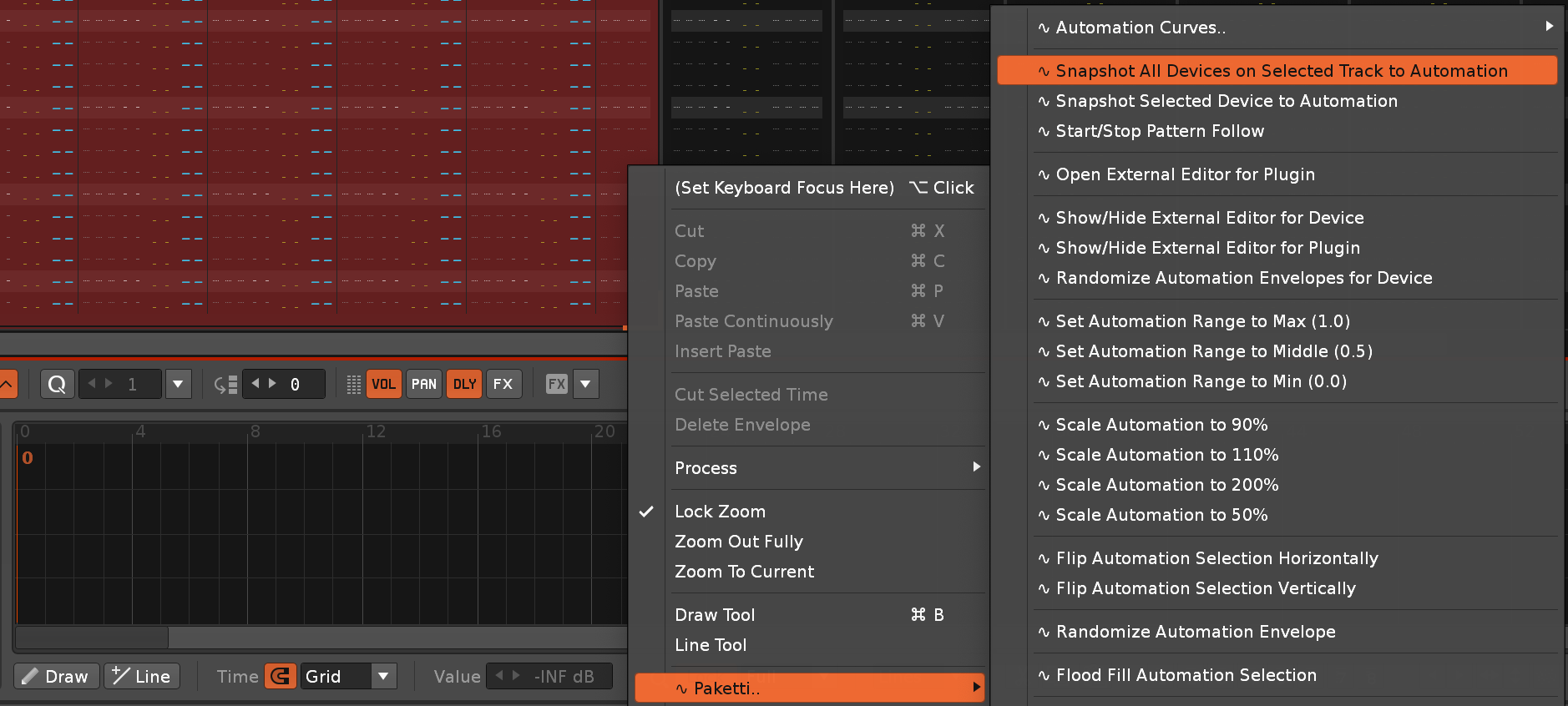

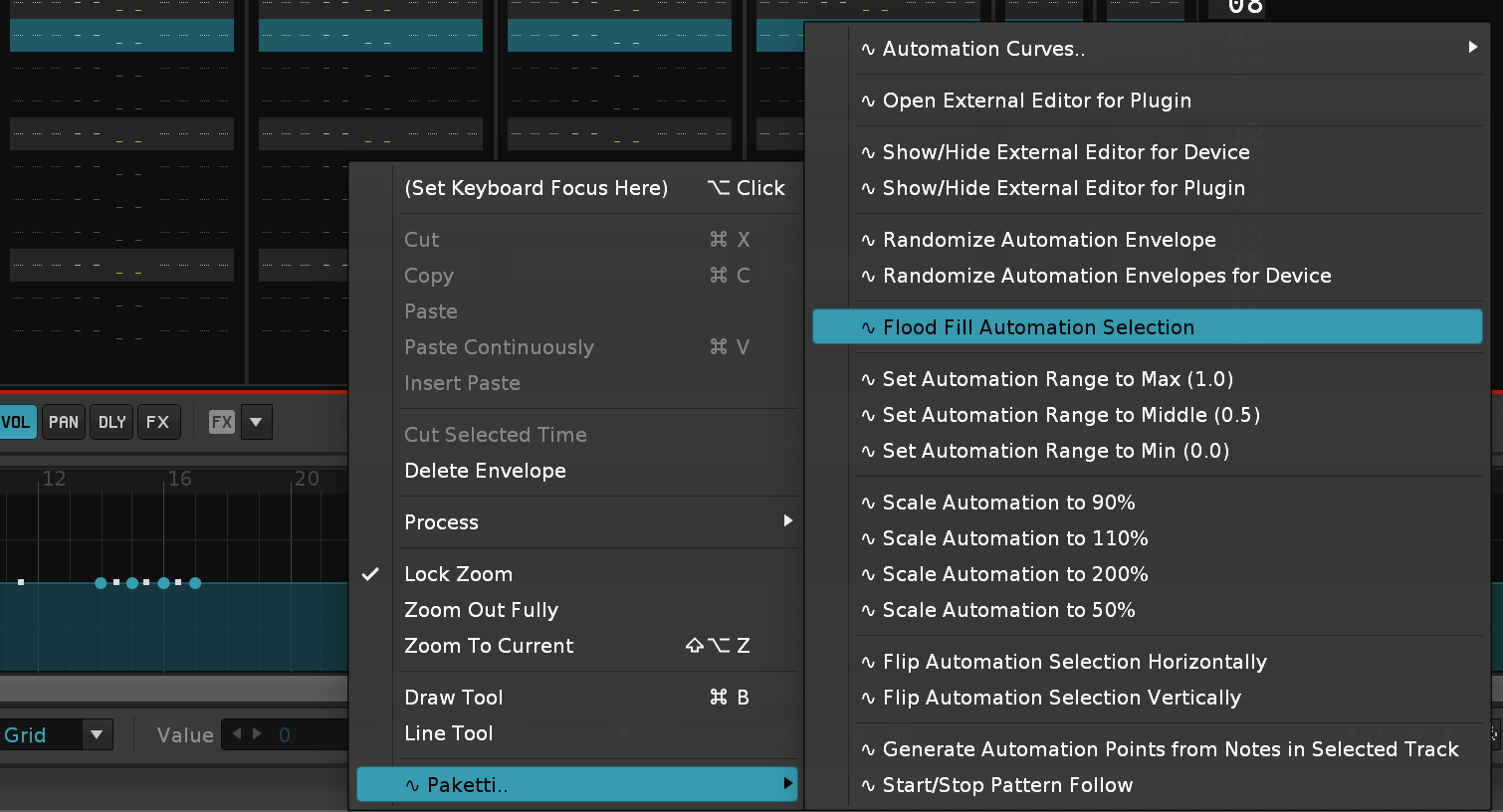

Automation

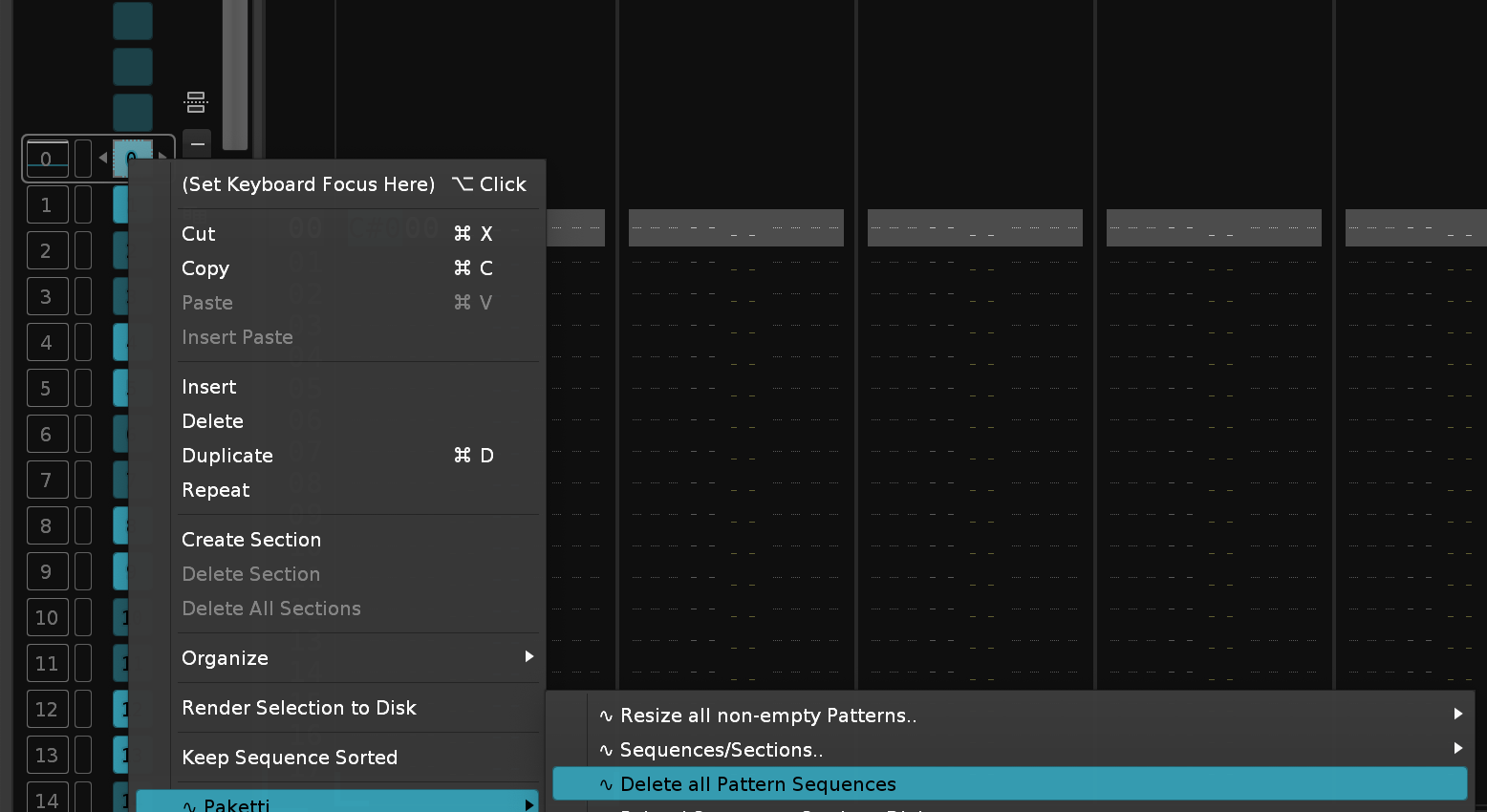

Pattern Matrix

Mixer

Phrase Editor
